Nu-Calgon 4720-10 - pH-Treat Condensate Neutralizer Kit Each

Brand:
Reviews (0)
SKU
4720-10
Nu-Calgon 4720-10 - pH-Treat Condensate Neutralizer Kit Each
Nu-Calgon 4720-10 - pH-Treat Condensate Neutralizer Kit Each
Nu-Calgon 4720-10 - pH-Treat Condensate Neutralizer Kit Each
Nu-Calgon 4720-10 - pH-Treat Condensate Neutralizer Kit Each

Nu-Calgon 4720-10 - pH-Treat Condensate Neutralizer Kit Each

SKU
4720-10
Brand:
Reviews (0)
$85.49
Out of stock

(special order is available)

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

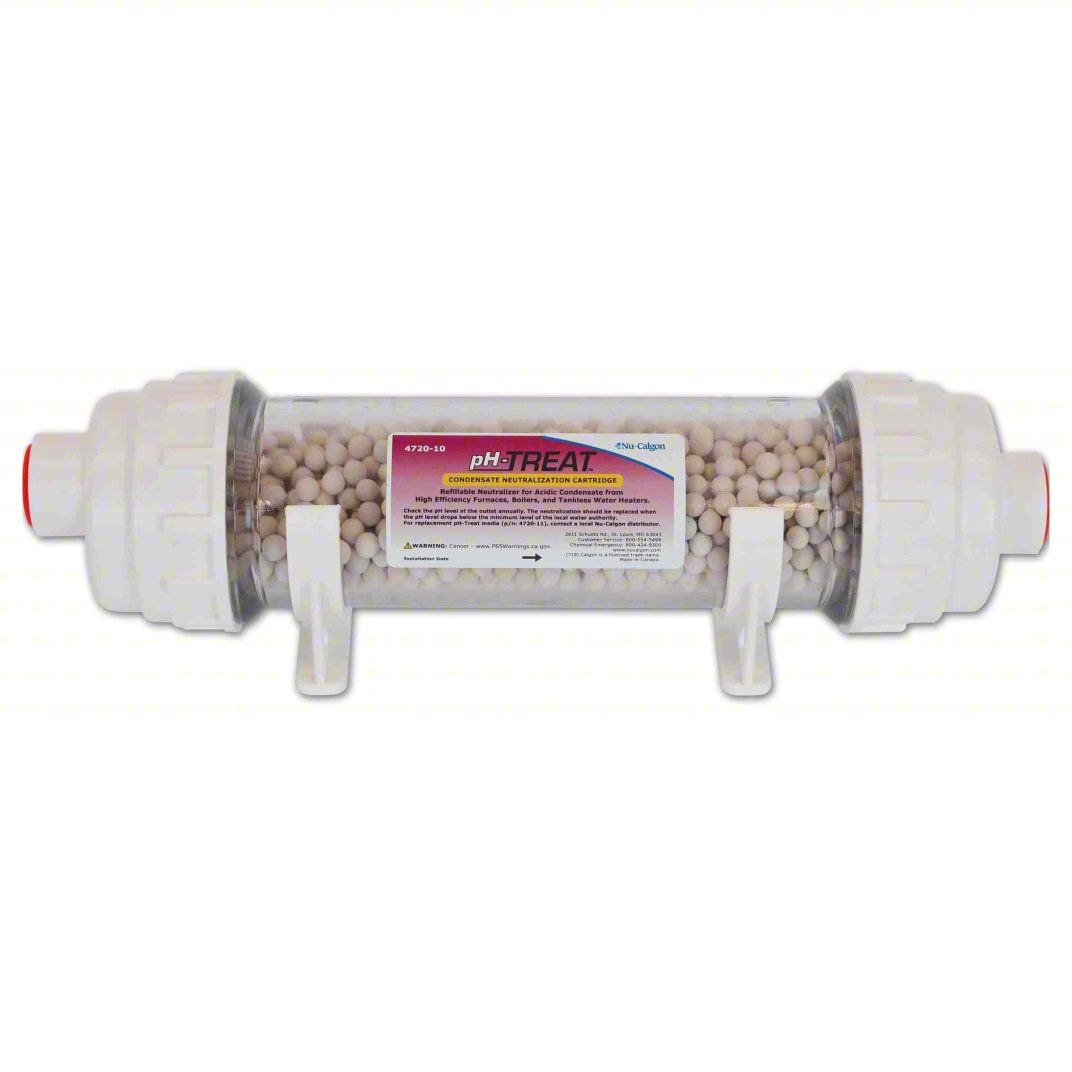

Nu-Calgon 4720-10 – pH-Treat Condensate Neutralizer Kit (Each)

The Nu-Calgon 4720-10 pH-Treat Condensate Neutralizer Kit is a refillable, compact unit designed for high-efficiency furnaces, boilers, and tankless water heaters. It neutralizes acidic condensate (pH 2–4) before discharge to prevent corrosion, protect plumbing systems, and meet environmental regulations.

Key Features & Benefits
  • Refillable Design: Reduces long-term costs by allowing easy media replacement.
  • Offset Inlet/Outlet Fittings: Enables both horizontal and vertical mounting for flexible installation.
  • High Capacity: Handles up to 400,000 BTU/h or approximately 1.6 gallons per hour of condensate flow.
  • Compact Size: Fits tight installation spaces near floor drains.
  • Complete Kit: Includes neutralizing media (initial charge), mounting brackets, O-rings, fittings, clamps, and installation hardware.
  • Service Life: Neutralizing media lasts about one year or until condensate pH falls below 6.
Technical Specifications
  • Inlet/Outlet: ¾″ NPT
  • Dimensions: Approximately 3.0″ diameter × 13.75″ length
  • Mounting Orientation: Horizontal or vertical (outlet must be higher than inlet)
  • Media Replacement: Use Nu-Calgon part 4720-11 for refills
  • Condensate Capacity: Up to 400,000 BTU/h
  • Material: Durable corrosion-resistant polymer housing
Installation & Maintenance
  1. Install downstream of the appliance’s condensate trap.
  2. Ensure outlet is higher than inlet to prevent backflow.
  3. Mount horizontally or vertically depending on available space.
  4. Check condensate pH every few months; replace media annually or when pH drops below 6.
  5. Avoid air pockets and ensure condensate flows freely through the unit.
Applications
Ideal for use with:
  • High-efficiency gas furnaces
  • Condensing boilers
  • Tankless water heaters
  • Other condensing appliances producing acidic condensate
Why Choose Nu-Calgon pH-Treat 4720-10?
  • Economical long-term solution thanks to refillable design.
  • Flexible installation for a wide range of HVAC and water-heating systems.
  • Protects drainage systems from acidic damage and corrosion.
  • Meets local plumbing and environmental code requirements.
More Information
More Information
Package Quantity1 Item
Item ReturnsSorry, the item can't be returned
