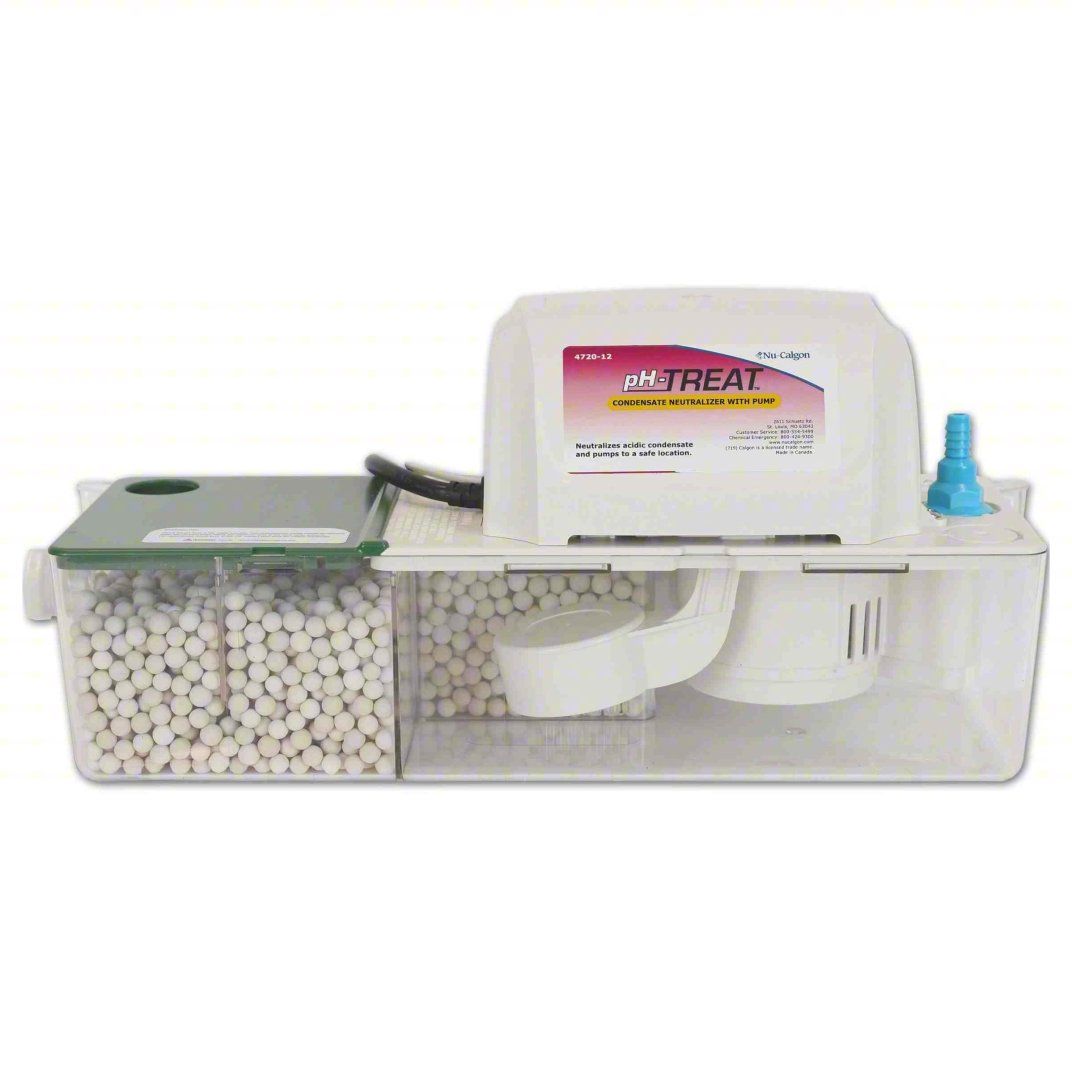

Nu-Calgon 4720-12 pH-Treat Condensate Neutralizer w/ Pump — Product Description
The Nu-Calgon 4720-12 pH-Treat Condensate Neutralizer with Pump is a high-capacity, refillable condensate neutralizer system designed for high-efficiency furnaces, boilers, and water heaters. It safely neutralizes acidic condensate and includes a built-in pump for installations where gravity drainage is not possible.
Key Features & Benefits
- Neutralizes Acidic Condensate: Effectively raises condensate pH from high-efficiency appliances to protect plumbing and drainage systems.
- Built-In Pump: Allows condensate discharge where gravity flow isn’t feasible, ideal for basements or remote installations.
- Refillable Media Chamber: Long-lasting tank design enables simple recharging with neutralizing media instead of full unit replacement.
- Flexible Installation Options: Can be installed horizontally or vertically to fit limited spaces.
- Durable Construction: Made from corrosion-resistant materials to ensure long service life and reliability.
- Easy Maintenance: Clear housing provides visual indication of media condition for quick replacement when needed.
Technical Specifications
| Model / Part Number | Nu-Calgon 4720-12 |
| Type | Condensate Neutralizer with Built-In Pump |
| Tank Capacity | Approximately 15.8 L |
| Media | Refillable neutralizing media (replace as needed) |
| Installation Orientation | Horizontal or vertical |
| Applications | Condensing furnaces, boilers, and water heaters |
| Construction | Heavy-duty plastic with offset fittings |
| Country of Origin | USA |
Applications
- High-efficiency condensing furnaces
- Condensing boilers
- Tankless water heaters
- Commercial HVAC systems
- Areas without gravity drainage
Why Choose the Nu-Calgon 4720-12
- Code Compliance: Meets plumbing code requirements for neutralizing acidic condensate before discharge.
- Cost Efficiency: Refillable media reduces long-term maintenance costs.
- Space Flexibility: Compact, low-profile design fits tight mechanical rooms.
- Performance Reliability: Proven Nu-Calgon quality ensures dependable, long-term operation.
Installation & Maintenance Tips
- Always install a condensate trap before the neutralizer to prevent gas backflow.
- Mount the unit level and ensure the pump is installed horizontally.
- Replace or refill media when outlet pH drops below 6.0.
- Avoid installing in areas subject to freezing temperatures.
- Disconnect power before performing any maintenance on the pump.
Shipping Details
- Weight: Approx. 14 lb (6.4 kg)
- Dimensions (L×W×H): 17 in × 10 in × 11 in
- Packaging: Individually boxed, ready for installation
Nu-Calgon 4720-12 pH-Treat Condensate Neutralizer with Pump provides complete protection against acidic condensate damage while offering the flexibility of pump-assisted discharge — the perfect solution for modern high-efficiency HVAC systems.
