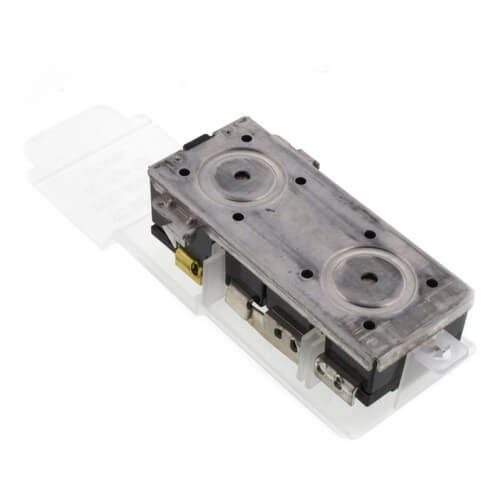

The 5600 Series electric water thermostats are designed for replacement on domestic and commercial water heaters. The 5600 Series features thermostat (automatic cycling) and high limit (manual reset) in one small housing. Compact size (3-3/4" overall length) assures firm clamp to tank. Controls have snap action operation, fast and easy wiring, and adjustable temperature ranges. See ordering chart for exact ranges available.

Application: Upper, Accessory

Differential: 17°F to 27°F

Switch: SPST/DPST High Limit

Temperature Range (F): 120°F - 160°F

Limit: 190°
