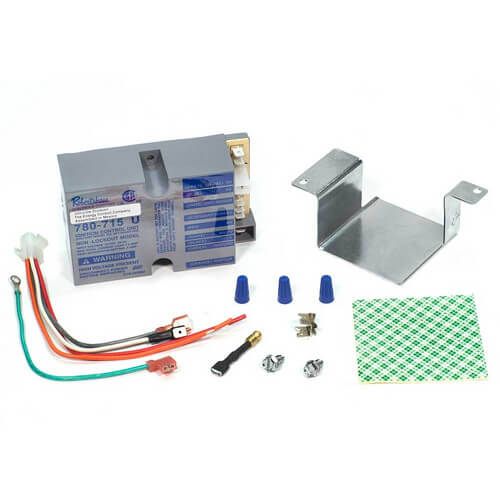

Robertshaw's Universal Ignition Control Uni-Kits feature a flame sense circuit that will work equally well on a one rod (local sense) or a two rod (remote sense) application

The automatic recycle features assure that, in the event of flame failure, main gas is disabled and the spark repetition sequence is restarted until pilot gas is ignited. Only after pilot ignition has been re-established can main gas be returned to the burner.

Specifications:

Input Voltage: 24 VAC to 50/60 Hz

Transformer: 24 VAC / 20 VA

Spark Rate: 3 to 4 sparks per second

Pilot Valve: 1 amp at .5 PF

Main Valve:1 amp at .5 PF

Combined Load: 1.5 at .4 PF

Flame Sense Current:.7 ?A DC @ 25°C / 24 VAC

Max. Total Current: 1.5 amp

Flame Failure Recognition Tme:.8 seconds maximum

Thermostat Anticipator Setting: .7 amp

Ambient Temperature Rating: ?40 to 175° (?40 to 80°C)

Relative Humidity: 95% noncondensing at 104°F
