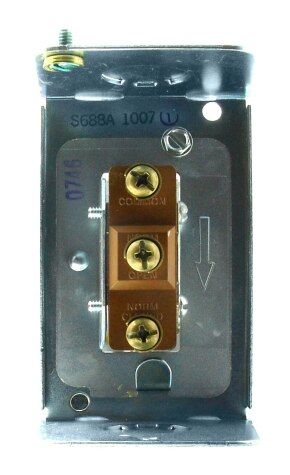

Rheem 41-25081-01 - Sail Switch
Dimensions Height x Width x Depth (in.): 2-15/16 x 3-3/4 x 2
Insertion Length (in.): 10
Maximum Ambient Temperature - Switch / Sail (F): 125 / 170
Motor FLA at 120V (A): NO: 2.0, NC: 1.0
Motor FLA at 230V (A): NO: 1.0, NC: 0.5
Motor LRA at 120V (A): NO: 12.0, NC: 6.0
Motor LRA at 230V (A): NO: 6.0, NC: 3.0
Operating Velocity (fpm): 75-250
Sail Dimensions: 5 in. wide (max), 26.2 sq. in. of area
Switch Type: SPDT
| Package Quantity | 1 Item |
|---|---|
| Item Returns | This item can be returned |
