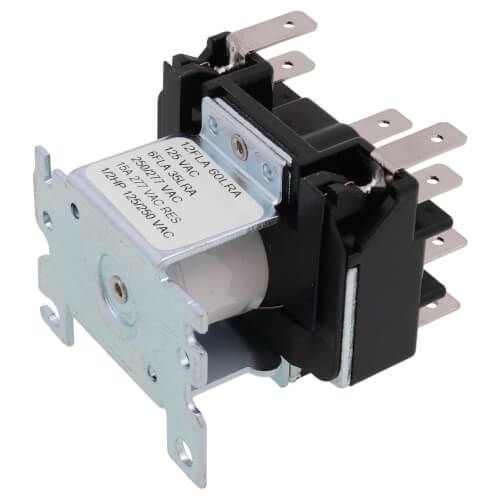

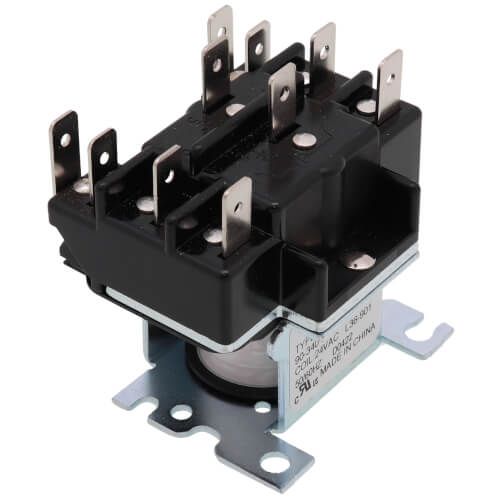

Rheem 42-18287-12 - 12A DPDT Relay (24V)

Brand:
Reviews (0)
SKU
42-18287-12
Rheem 42-18287-12 - 12A DPDT Relay (24V)
Rheem 42-18287-12 - 12A DPDT Relay (24V)
Rheem 42-18287-12 - 12A DPDT Relay (24V)
Rheem 42-18287-12 - 12A DPDT Relay (24V)

Rheem 42-18287-12 - 12A DPDT Relay (24V)

SKU
42-18287-12
Brand:
Reviews (0)
$17.68
Out of stock

(special order is available)

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

Coil Frequency (Hz): 50/60
Coil Voltage (VAC): 24
Contact Bias: NO / NC (2)
Contact Configuration: DPDT
FLA at 120V (A): 12
FLA at 230V (A): 6
FLA at 277V (A): 6
Horsepower Rating at 120V (HP): 1/2
Horsepower Rating at 230V (HP): 1/2
LRA at 120V (A): 60
LRA at 230V (A): 35
LRA at 277V (A): 35
Resistive Rating at 230V (A): 15
Resistive Rating at 277V (A): 15
Terminal Connections: 1/4 in. Quick Connects
