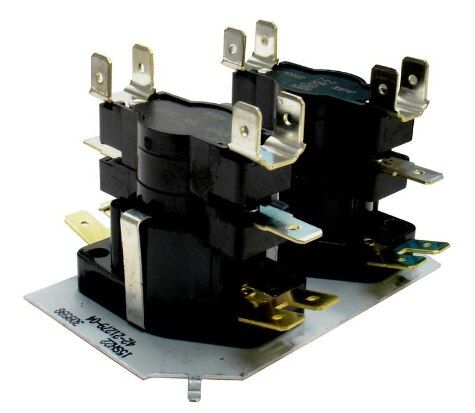

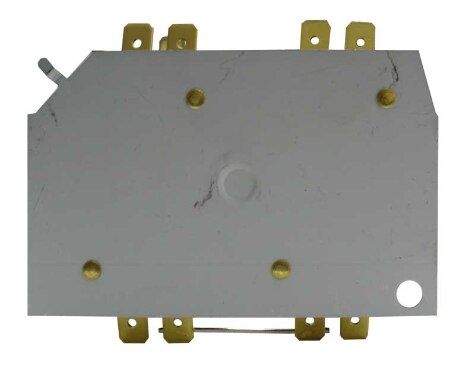

Rheem 42-21279-04 - Sequencing Relay - 4-Pole, 4PST - NO, Heater 24 VAC/.28A-.36A steady state/1.4A maximum
Rheem 42-21279-04 - Sequencing Relay - 4-Pole, 4PST - NO, Heater 24 VAC/.28A-.36A steady state/1.4A maximum
Combination Rating at 230V (RES/FLA/LRA): 23/7/42
Connections: 1/4 in. Quick Connects
Contact Configuration: 4PST - NO
Heater Voltage (V): 24
Heater Wattage/ Power Consumption: 24 VAC/.28A-.36A steady state/1.4A maximum
Motor FLA at 120V (A): Pole 1: 7 Pole 2: 7 Pole 3: 7 Pole 4: 7
Motor FLA at 230V (A): Pole 1: 7 Pole 2: 7 Pole 3: 7 Pole 4: 7
Motor LRA at 120V (A): Pole 1: 42 Pole 2: 42 Pole 3: 42 Pole 4: 42
Motor LRA at 230V (A): Pole 1: 42 Pole 2: 42 Pole 3: 42 Pole 4: 42
Mounting: Double Flush Mount Plate w/Mounting Hole & Tab
No. of Poles: 4
Off Timing - Pole 1 (seconds): 1-110
Off Timing - Pole 2 (seconds): 1-110
Off Timing - Pole 3 (seconds): 1-110
Off Timing - Pole 4 (seconds): 1-110
On Timing - Pole 1 (seconds): 1-110
On Timing - Pole 2 (seconds): 1-110
On Timing - Pole 3 (seconds): 1-110
On Timing - Pole 4 (seconds): 1-110
Resistive Rating at 120V (A): Pole 1: 25 Pole 2: 25 Pole 3: 25 Pole 4: 25
Resistive Rating at 230V (A): Pole 1: 25 Pole 2: 25 Pole 3: 25 Pole 4: 25
