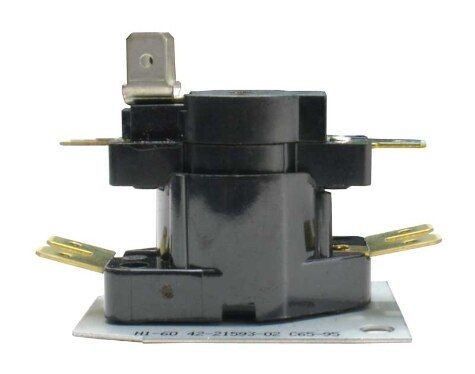

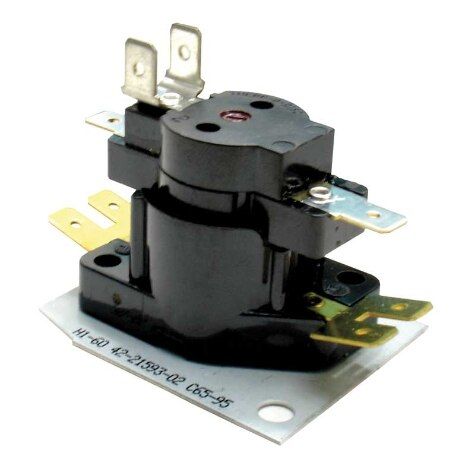

Rheem 42-21593-02 - Sequencing Relay - 1-Pole, SPDT - NO/NC, Heater 24 VAC/.16A steady state/0.9A inrush
Rheem 42-21593-02 - Sequencing Relay - 1-Pole, SPDT - NO/NC, Heater 24 VAC/.16A steady state/0.9A inrush
Connections 1/4 in. Quick Connects
Contact Configuration SPDT - NO/NC
Heater Voltage (V) 24
Heater Wattage/ Power Consumption 24 VAC/.16A steady state/0.9A inrush
Motor FLA at 120V (A) Contacts 1 to 3: 14
Motor FLA at 230V (A) Contacts 1 to 3: 7 Contacts 1 to 2: 4.1
Motor FLA at 460V (A) Contacts 1 to 3: 3
Motor LRA at 120V (A) Contacts 1 to 3: 72
Motor LRA at 230V (A) Contacts 1 to 3: 42 Contacts 1 to 2: 8
Motor LRA at 460V (A): Contacts 1 to 3: 18
Mounting: Flush Mount Plate w/Mounting Hole & Tab
No. of Poles: 1
Off Timing - Pole 1 (seconds): 65-95
Off Timing - Pole 2 (seconds): 65-95
On Timing - Pole 1 (seconds): 1-60
On Timing - Pole 2 (seconds): 1-60
Pilot Duty Rating at 120V (VA): Contacts 1 to 3: 125 Contacts 1 to 2: 125
Pilot Duty Rating at 230V (VA): Contacts 1 to 3: 125 Contacts 1 to 2: 125
Pilot Duty Rating at 460V (VA): Contacts 1 to 3: 125 Contacts 1 to 2: 125
Resistive Rating at 230V (A): Contacts 1 to 3: 25 Contacts 1 to 2: 5
Resistive Rating at 460V (A): Contacts 1 to 3: 12.5
