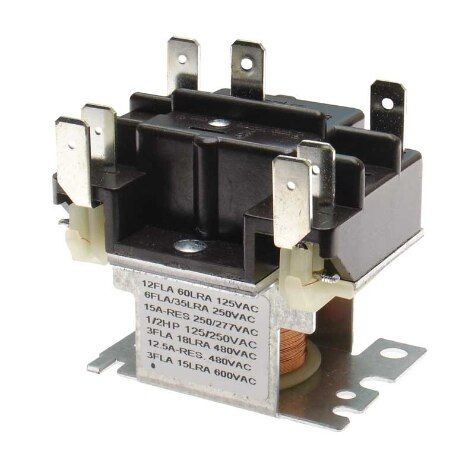

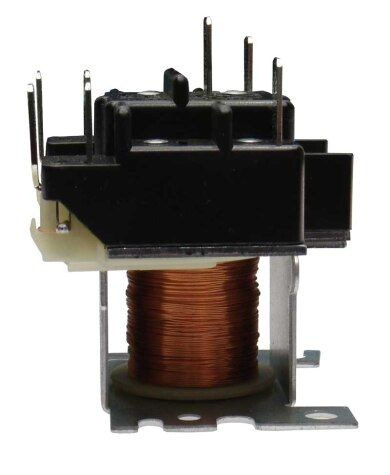

Rheem 42-23114-02 - Relay - SPDT (24VAC coil)
Coil Frequency (Hz): 50/60
Coil Voltage (VAC): 24
Contact Bias: NO / NC
Contact Configuration: SPDT
FLA at 120V (A): 12
FLA at 230V (A): 6
FLA at 460V (A): 3
FLA at 600V (A): 3
Horsepower Rating at 120V (HP): 1/2
Horsepower Rating at 230V (HP): 1/2
LRA at 120V (A): 60
LRA at 230V (A): 35
LRA at 460V (A): 18
LRA at 600V (A): 15
Resistive Rating at 230V (A): 15
Resistive Rating at 277V (A): 15
Resistive Rating at 460V (A): 12.50
Terminal Connections: 1/4 in. Quick Connects
