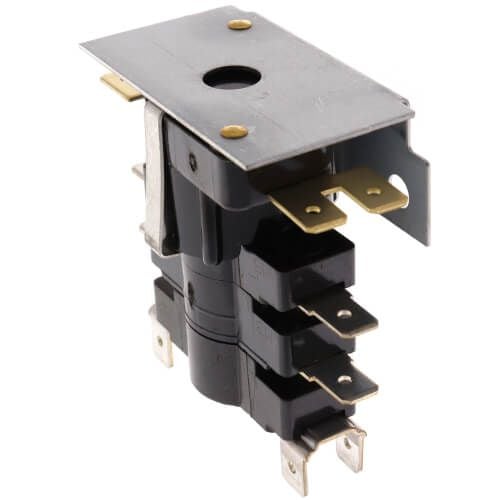

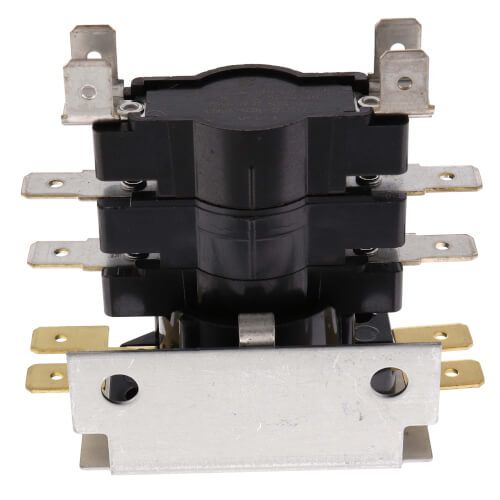

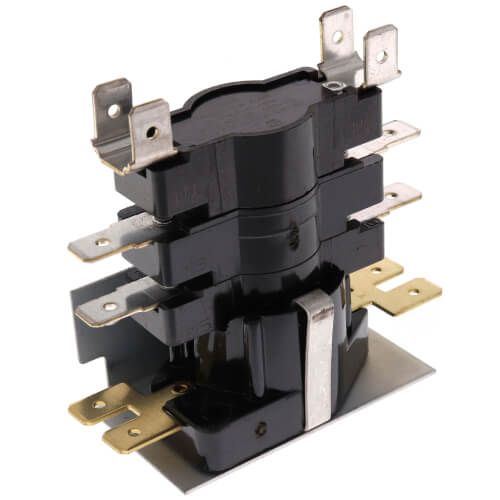

Rheem 42-23116-07 - 3PST N/O Sequencing Relay (24V)
Connections: 1/4 in. Quick Connects
Contact Configuration: TPST - NO
Heater Voltage (V): 24
Heater Wattage/ Power Consumption: 24 VAC / 0.2A steady state / 0.55A maximum
Motor FLA at 120V (A): Pole 1: 7 Pole 2: 7 Pole 3: 7
Motor FLA at 230V (A): Pole 1: 7 Pole 2: 7 Pole 3: 7
Motor FLA at 460V (A): Pole 1: 3 Pole 2: 3 Pole 3: 3
Motor LRA at 120V (A): Pole 1: 42 Pole 2: 42 Pole 3: 42
Motor LRA at 230V (A): Pole 1: 42 Pole 2: 42 Pole 3: 42
Motor LRA at 460V (A): Pole 1: 18 Pole 2: 18 Pole 3: 18
Mounting: Angle Bracket w/Two Mounting Holes
No. of Poles: 3
Off Timing - Pole 1 (seconds): 90-150
Off Timing - Pole 2 (seconds): 30-60
Off Timing - Pole 3 (seconds): 30-60
On Timing - Pole 1 (seconds): 10-30
On Timing - Pole 2 (seconds): 10-30
On Timing - Pole 3 (seconds): 10-30
Pilot Duty Rating at 120V (VA): Pole 1: 125 Pole 2: 125 Pole 3: 125
Pilot Duty Rating at 230V (VA): Pole 1: 125 Pole 2: 125 Pole 3: 125
Pilot Duty Rating at 460V (VA): Pole 1: 125 Pole 2: 125 Pole 3: 125
Resistive Rating at 120V (A): Pole 1: 25 Pole 2: 25 Pole 3: 25
Resistive Rating at 230V (A): Pole 1: 25 Pole 2: 25 Pole 3: 25
Resistive Rating at 460V (A): Pole 1: 12.5 Pole 2: 12.5 Pole 3: 12.5
