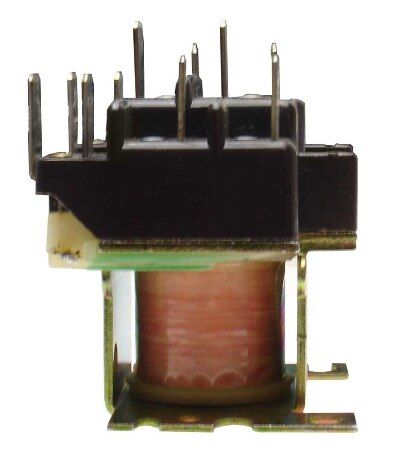

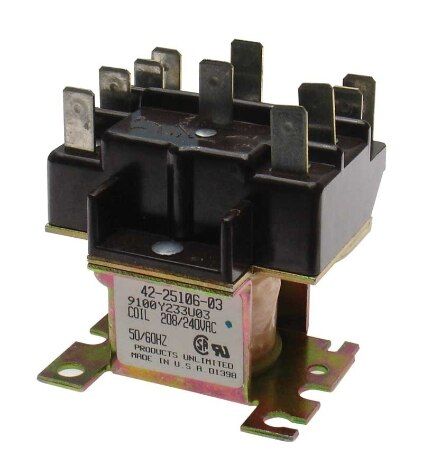

Rheem 42-25106-03 - Relay - DPDT (208/230VAC coil)
Coil Frequency (Hz): 50/60
Coil Voltage (VAC): 208, 230
Contact Bias: NO / NC (2)
Contact Configuration: DPDT
FLA at 120V (A): 12
FLA at 230V (A): 6
FLA at 277V (A): 6
Horsepower Rating at 120V (HP): 1/2
Horsepower Rating at 230V (HP): 1/2
LRA at 120V (A): 60
LRA at 230V (A): 30
LRA at 277V (A): 30
Resistive Rating at 230V (A): 15
Resistive Rating at 277V (A): 15
Terminal Connections: 1/4 in. Quick Connects
