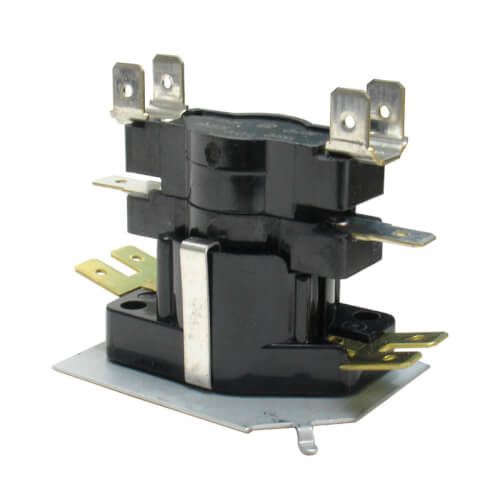

Rheem 425089 - Sequencing Relay
Combination Rating at 230V (RES/FLA/LRA): 30A Max: 23A resistive & 7A FL
Connections: 1/4 in. Quick Connects
Contact Configuration: DPST - NO
Heater Voltage (V): 24
Heater Wattage/ Power Consumption: 24 VAC/.10A -.18A steady state/.35 - 1.0 amps peak for 0.8 sec.
Motor FLA at 120V (A): Pole 1: 14 Pole 2: 14
Motor FLA at 230V (A): Pole 1: 7 Pole 2: 7
Motor FLA at 460V (A): Pole 1: 5 Pole 2: 5
Motor LRA at 120V (A): Pole 1: 72 Pole 2: 72
Motor LRA at 230V (A): Pole 1: 42 Pole 2: 42
Motor LRA at 460V (A): Pole 1: 30 Pole 2: 30
Mounting: Flush Mount Plate w/Mounting Hole & Tab
No. of Poles: 2
Off Timing - Pole 1 (seconds): 1-30
Off Timing - Pole 2 (seconds): 1-30
On Timing - Pole 1 (seconds): 30-60
On Timing - Pole 2 (seconds): 30-60
Pilot Duty Rating at 120V (VA): Pole 1: 125 Pole 2: 125
Pilot Duty Rating at 230V (VA): Pole 1: 125 Pole 2: 125
Pilot Duty Rating at 460V (VA): Pole 1: 125 Pole 2: 125
Resistive Rating at 120V (A): Pole 1: 25 Pole 2: 25
Resistive Rating at 230V (A): Pole 1: 25 Pole 2: 25
Resistive Rating at 460V (A): Pole 1: 12.5 Pole 2: 12.5
