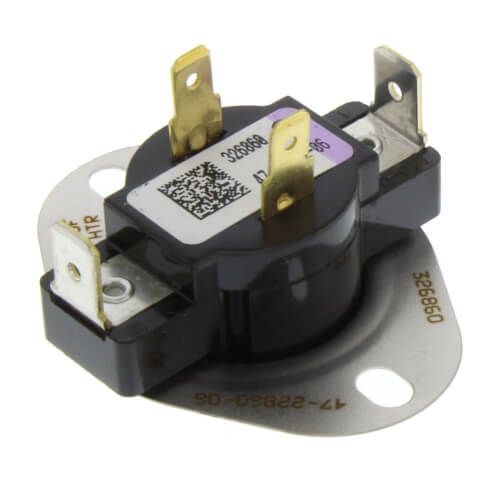

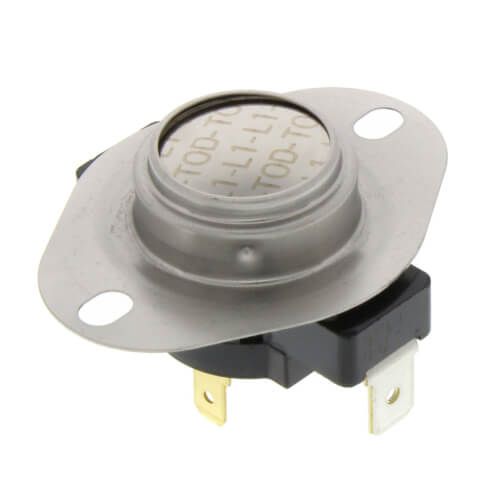

Rheem 47-22860-06 - SPST N/C A/R Limit (110 Open 100 Close)
Category: General Purpose
Close Temperature (F): 100
Color Code: Purple
Connections: 1/4 in. Quick Connects (outside) / 3/16 in. Quick Connects (inside)
Contact Orientation: Normally Closed
Disc Face: Exposed
Heater Wattage (W): 1
Maximum Current Rating (A): 25
Maximum Voltage Rating (VAC): 230
Mounting Insertion Depth - Maximum (in.): 3/8
Mounting: Flanged airstream
No. of Poles: 1
Nominal Temperature Difference (F): 10
Open Temperature (F): 110
Reset Mode: Auto
Switch Type: SPST
TOD Switch Series: 69T
Tolerance Close Temperature (F): +10/-0
Tolerance Open Temperature (F): +10/-0
| Package Quantity | 1 Item |
|---|---|
| Item Returns | This item can be returned |
