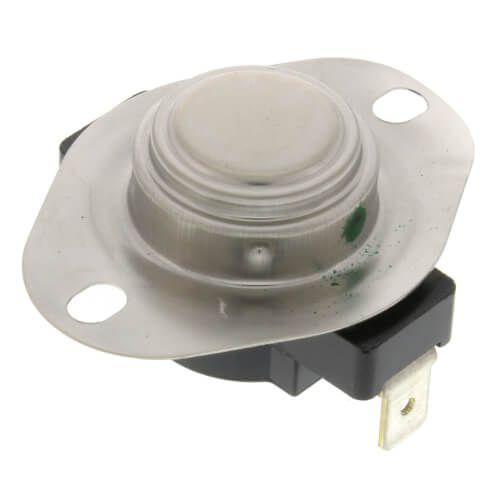

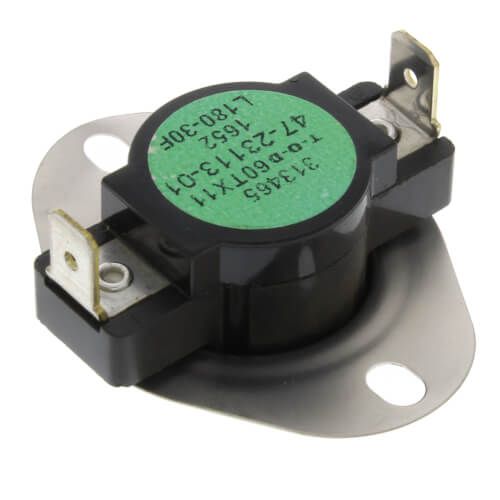

Rheem 47-23113-01 - SPST N/C Limit, 180 Open 150 Close
Category General Purpose
Close Temperature (F) 150
Color Code Green
Connections 1/4 in. Quick Connects
Contact Orientation Normally Closed
Disc Face Enclosed
Maximum Current Rating (A): 25
Maximum Voltage Rating (VAC): 230
Mounting Insertion Depth - Maximum (in.): 3/8
Mounting: Flanged airstream
No. of Poles: 1
Nominal Temperature Difference (F): 30
Open Temperature (F): 180
Reset Mode: Auto
Switch Type: SPST
TOD Switch Series: 60T
Tolerance Close Temperature (F): +/-6
Tolerance Open Temperature (F): +/-5
| Package Quantity | 1 Item |
|---|---|
| Item Returns | This item can be returned |
