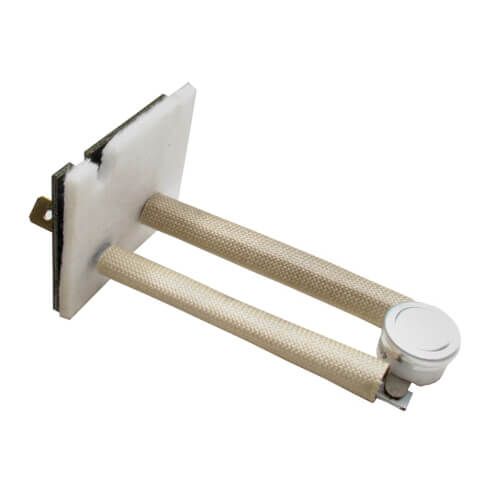

Rheem 47-25349-10 - Limit Switch - Normally Closed, Close at 100F, Open at 120F, Auto Reset, 120 / 230VAC
Rheem 47-25349-10 - Limit Switch - Normally Closed, Close at 100F, Open at 120F, Auto Reset, 120 / 230VAC
Category: General Purpose
Close Temperature (F): 100
Color Code: Tan/Tan
Connections: 1/4 in. Quick Connects
Contact Orientation: Normally Closed
Disc Face: Enclosed
Maximum Current Rating (A): 15 / 10
Maximum Voltage Rating (VAC): 120 / 230
Mounting Board Dimensions (in.): 1-5/8 x 1-7/16
Mounting Insertion Depth - Maximum (in.): 3
Mounting: Board Mount - 90 degree strap angle
No. of Poles: 1
Nominal Temperature Difference (F): 20
Open Temperature (F): 120
Reset Mode: Auto
Switch Type: SPST
TOD Switch Series: 36T
Tolerance Close Temperature (F): +/-7
Tolerance Open Temperature (F): +/-5
