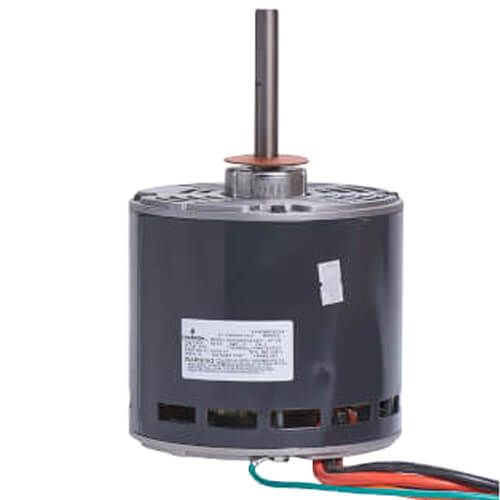

Rheem 51-19704-01 - Condenser - Open Ends Motor - 1/4 HP, 1 Phase, 1 Speed, 460V, 1075 RPM

Brand:
Reviews (0)
SKU
51-19704-01
Rheem 51-19704-01 - Condenser - Open Ends Motor - 1/4 HP, 1 Phase, 1 Speed, 460V, 1075 RPM

Rheem 51-19704-01 - Condenser - Open Ends Motor - 1/4 HP, 1 Phase, 1 Speed, 460V, 1075 RPM

SKU
51-19704-01
Brand:
Reviews (0)
$138.18
Out of stock

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

Application: Condenser - Open Ends
Bearing Type: Sleeve
Drive Type: Direct Drive
FLA at 460V (A): 1.00
Frame Size: 48Y
Frequency (Hz): 60
High Speed (RPM): 1075
HP: 1/4
Input Voltage (V): 460
Keyed/Flat Shaft Length (in.): 1-1/2
LRA at 460V (A): 2.77
Motor Body Diameter (in.): 5-5/8
Motor Body Length (in.): 5-1/16
Mounting: Shell-band
No. of Phases: 1
No. of Speeds: 1
Overall Motor Length (in.): 8-13/16
Overall Shaft Length (in.): 3-1/4
Rotation Direction (OSE): CCW
Run Capacitor (uF/V): 5/370
Shaft Diameter (in.): 1/2
