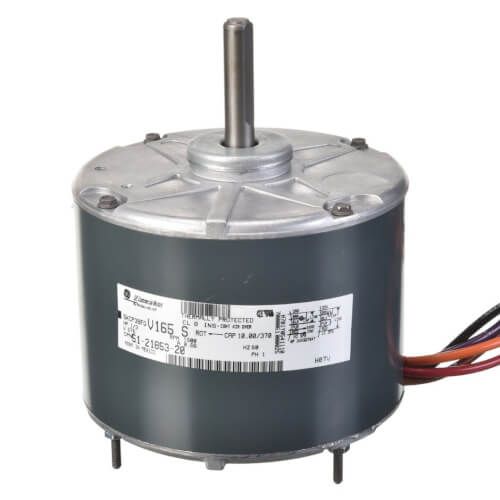

Rheem 51-21853-20 - Exhaust Fan Motor - 1/3 HP, 1 Phase, 2 Speed, 575V, 1725 RPM

Brand:
Reviews (0)
SKU
51-21853-20
Rheem 51-21853-20 - Exhaust Fan Motor - 1/3 HP, 1 Phase, 2 Speed, 575V, 1725 RPM
Rheem 51-21853-20 - Exhaust Fan Motor - 1/3 HP, 1 Phase, 2 Speed, 575V, 1725 RPM
Rheem 51-21853-20 - Exhaust Fan Motor - 1/3 HP, 1 Phase, 2 Speed, 575V, 1725 RPM
Rheem 51-21853-20 - Exhaust Fan Motor - 1/3 HP, 1 Phase, 2 Speed, 575V, 1725 RPM
Rheem 51-21853-20 - Exhaust Fan Motor - 1/3 HP, 1 Phase, 2 Speed, 575V, 1725 RPM
Rheem 51-21853-20 - Exhaust Fan Motor - 1/3 HP, 1 Phase, 2 Speed, 575V, 1725 RPM

Rheem 51-21853-20 - Exhaust Fan Motor - 1/3 HP, 1 Phase, 2 Speed, 575V, 1725 RPM

SKU
51-21853-20
Brand:
Reviews (0)
$151.66
Out of stock

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

Application: Exhaust Fan
Bearing Type: Sleeve
Drive Type: Direct Drive
FLA at 575V (A): 0.81
Frame Size: 48
Frequency (Hz): 60
High Speed (RPM): 1725
HP: 1/3
Input Voltage (V): 575
Keyed/Flat Shaft Length (in.): 1-5/8
LRA at 575V (A): 1.50
Motor Body Diameter (in.): 5-5/8
Motor Body Length (in.): 4-1/4
Mounting: Shell-band | Thru-bolt
No. of Phases: 1
No. of Speeds: 2
Overall Motor Length (in.): 6-11/16
Overall Shaft Length (in.): 2
Rotation Direction (OSE): CCW
Run Capacitor (uF/V): 10/370

Shaft Diameter (in.): 1/2
