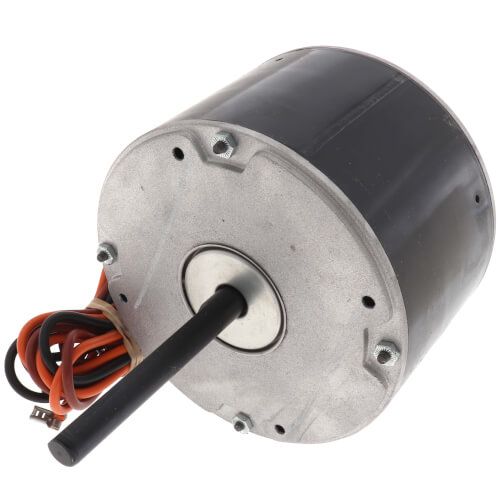

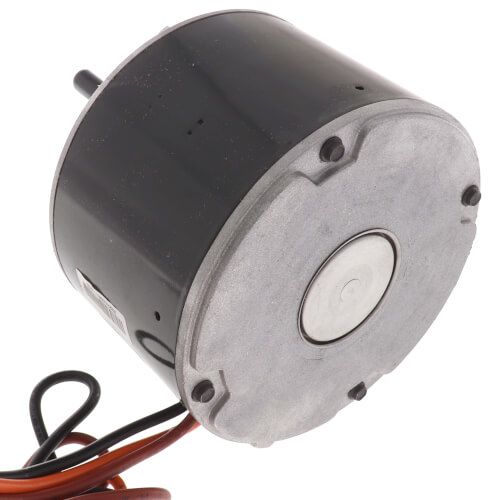

Rheem 51-21854-18 - Condenser Motor - 1/5 HP, 1 Phase, 1 Speed, 208/230V, 1075 RPM

Brand:
Reviews (0)
SKU
51-21854-18
Rheem 51-21854-18 - Condenser Motor - 1/5 HP, 1 Phase, 1 Speed, 208/230V, 1075 RPM
Rheem 51-21854-18 - Condenser Motor - 1/5 HP, 1 Phase, 1 Speed, 208/230V, 1075 RPM
Rheem 51-21854-18 - Condenser Motor - 1/5 HP, 1 Phase, 1 Speed, 208/230V, 1075 RPM
Rheem 51-21854-18 - Condenser Motor - 1/5 HP, 1 Phase, 1 Speed, 208/230V, 1075 RPM

Rheem 51-21854-18 - Condenser Motor - 1/5 HP, 1 Phase, 1 Speed, 208/230V, 1075 RPM

SKU
51-21854-18
Brand:
Reviews (0)
$161.12
Out of stock

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

Application: Condenser
Bearing Type: Sleeve
Drive Type: Direct Drive
FLA at 230V (A) 1.25
Frame Size: 48
Frequency (Hz): 60
High Speed (RPM): 1075
HP: 1/5
Input Voltage (V): 208 | 230
Keyed/Flat Shaft Length (in.): 3-3/16
LRA at 230V (A): 2.50
Motor Body Diameter (in.): 5-5/8
Motor Body Length (in.): 5-9/16
Mounting: Shell-band
No. of Phases: 1
No. of Speeds: 1
Overall Motor Length (in.): 7-1/4
Overall Shaft Length (in.): 3-11/16
Rotation Direction (OSE): CCW
Run Capacitor (uF/V): 3/370
Shaft Diameter (in.): 1/2
