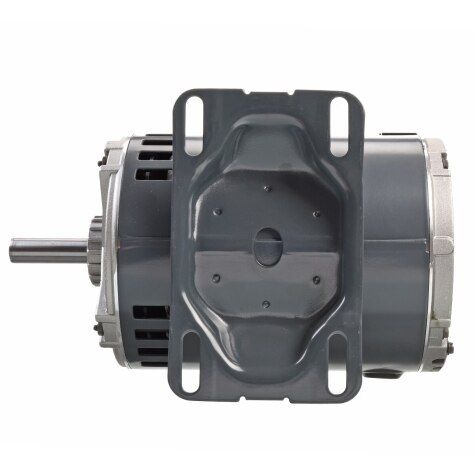

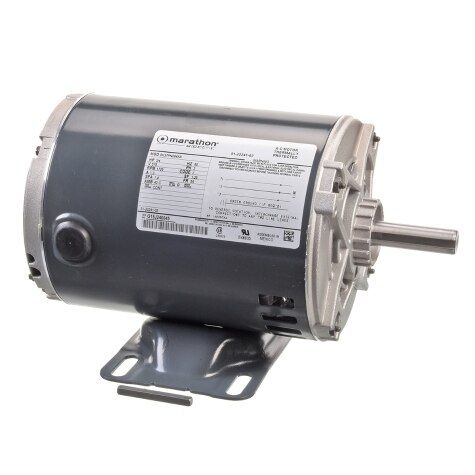

Rheem 51-22241-02 - Blower Motor - 3/4 HP, 3 Phase, 1 Speed, 575V, 1725 RPM

Brand:
Reviews (0)
SKU
51-22241-02
Rheem 51-22241-02 - Blower Motor - 3/4 HP, 3 Phase, 1 Speed, 575V, 1725 RPM
Rheem 51-22241-02 - Blower Motor - 3/4 HP, 3 Phase, 1 Speed, 575V, 1725 RPM
Rheem 51-22241-02 - Blower Motor - 3/4 HP, 3 Phase, 1 Speed, 575V, 1725 RPM
Rheem 51-22241-02 - Blower Motor - 3/4 HP, 3 Phase, 1 Speed, 575V, 1725 RPM

Rheem 51-22241-02 - Blower Motor - 3/4 HP, 3 Phase, 1 Speed, 575V, 1725 RPM

SKU
51-22241-02
Brand:
Reviews (0)
$430.55
Out of stock

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

Application: Blower
Bearing Type: Ball
Drive Type: Belt Drive
FLA at 575V (A): 1.30
Frame Size: 56
Frequency (Hz): 60
High Speed (RPM): 1725
HP: 3/4
Input Voltage (V): 575
Keyed/Flat Shaft Length (in.): 3/16 x 3/16 x 1-5/8
LRA at 575V (A): 6.00
Motor Body Diameter (in.): 5-5/8
Motor Body Length (in.): 8-7/8
Mounting: Platform
No. of Phases: 3
No. of Speeds: 1
Overall Motor Length (in.): 10-3/4
Overall Shaft Length (in.): 1-7/8
Rotation Direction (OSE): Reversible
Shaft Diameter (in.): 5/8
