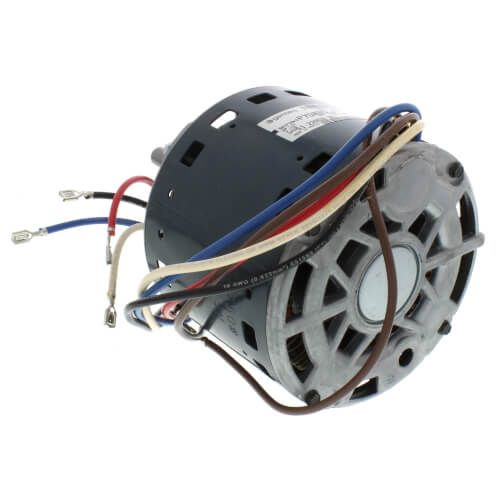

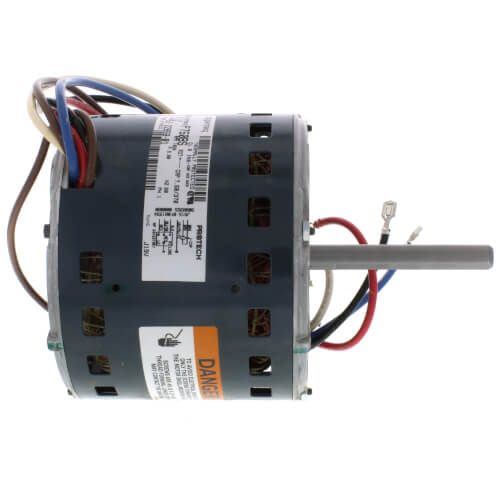

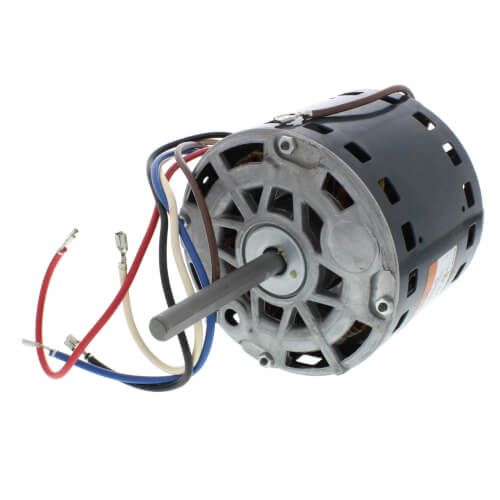

Rheem 51-22858-01 - 1/2 HP 1075 RPM 3 Speed Motor (120V)

Brand:
Reviews (0)
SKU
51-22858-01
Rheem 51-22858-01 - 1/2 HP 1075 RPM 3 Speed Motor (120V)
Rheem 51-22858-01 - 1/2 HP 1075 RPM 3 Speed Motor (120V)
Rheem 51-22858-01 - 1/2 HP 1075 RPM 3 Speed Motor (120V)
Rheem 51-22858-01 - 1/2 HP 1075 RPM 3 Speed Motor (120V)
Rheem 51-22858-01 - 1/2 HP 1075 RPM 3 Speed Motor (120V)
Rheem 51-22858-01 - 1/2 HP 1075 RPM 3 Speed Motor (120V)

Rheem 51-22858-01 - 1/2 HP 1075 RPM 3 Speed Motor (120V)

SKU
51-22858-01
Brand:
Reviews (0)
$175.83
Out of stock

(special order is available)

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

Application: Blower
Bearing Type: Sleeve
Drive Type: Direct Drive
FLA at 120V (A): 5.80
Frame Size: 48
Frequency (Hz): 60
High Speed (RPM): 1075
HP: 1/2
Input Voltage (V): 120
Keyed/Flat Shaft Length (in.): 3
LRA at 120V (A): 12.40
Motor Body Diameter (in.): 5-5/8
Motor Body Length (in.): 4-3/4
Mounting: Shell-band | Shell-screw
No. of Phases: 1
No. of Speeds: 3
Overall Motor Length (in.): 8-1/4
Overall Shaft Length (in.): 3-1/2
Rotation Direction (OSE): CCW
Run Capacitor (uF/V): 7.5/370
Shaft Diameter (in.): 1/2
