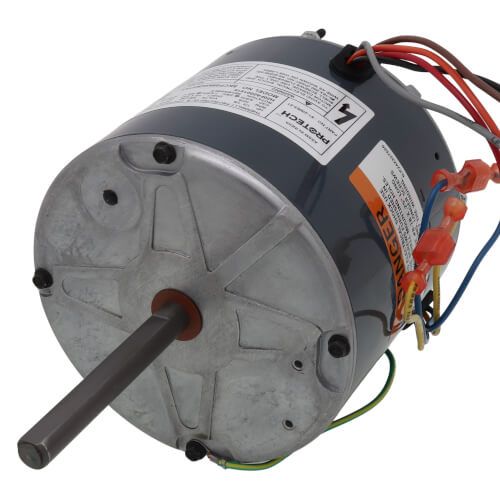

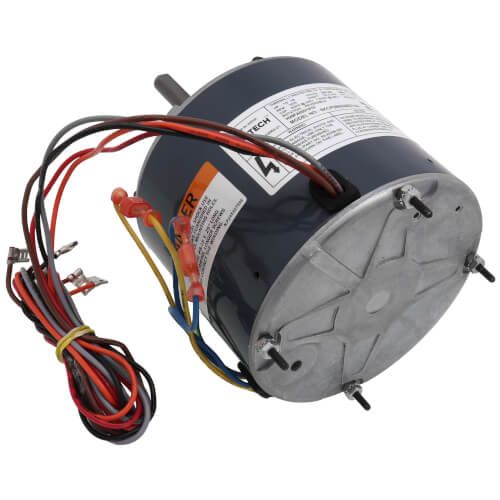

Rheem 51-23053-21 - PROTECH TRIPSAVER Condenser Motor - 1/6 - 1/3 HP, 1 Phase, 2 Speed, 208/230V, 1075 RPM

Brand:
Reviews (0)
SKU
51-23053-21
Rheem 51-23053-21 - PROTECH TRIPSAVER Condenser Motor - 1/6 - 1/3 HP, 1 Phase, 2 Speed, 208/230V, 1075 RPM
Rheem 51-23053-21 - PROTECH TRIPSAVER Condenser Motor - 1/6 - 1/3 HP, 1 Phase, 2 Speed, 208/230V, 1075 RPM
Rheem 51-23053-21 - PROTECH TRIPSAVER Condenser Motor - 1/6 - 1/3 HP, 1 Phase, 2 Speed, 208/230V, 1075 RPM
Rheem 51-23053-21 - PROTECH TRIPSAVER Condenser Motor - 1/6 - 1/3 HP, 1 Phase, 2 Speed, 208/230V, 1075 RPM

Rheem 51-23053-21 - PROTECH TRIPSAVER Condenser Motor - 1/6 - 1/3 HP, 1 Phase, 2 Speed, 208/230V, 1075 RPM

SKU
51-23053-21
Brand:
Reviews (0)
$176.24
Out of stock

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

Application: Condenser
Bearing Type: Sleeve
Drive Type: Direct Drive
FLA at 230V (A): 2.60
Frame Size: 48
Frequency (Hz): 60
High Speed (RPM): 1075
HP: 1/6 to 1/3
Input Voltage (V): 208 | 230
Keyed/Flat Shaft Length (in.): 3-1/4
Low Speed (RPM): 900
Motor Body Diameter (in.): 5-5/8
Motor Body Length (in.): 4-5/8
Mounting: Shell-band | Shell-screw | Thru-bolt
No. of Phases: 1
No. of Speeds: 2
Overall Motor Length (in.): 8-3/8
Overall Shaft Length (in.): 3-3/4
Rotation Direction (OSE): Reversible
Run Capacitor (uF/V): 5/370 (230V), 7.5/370 (208V)
Shaft Diameter (in.): 1/2
