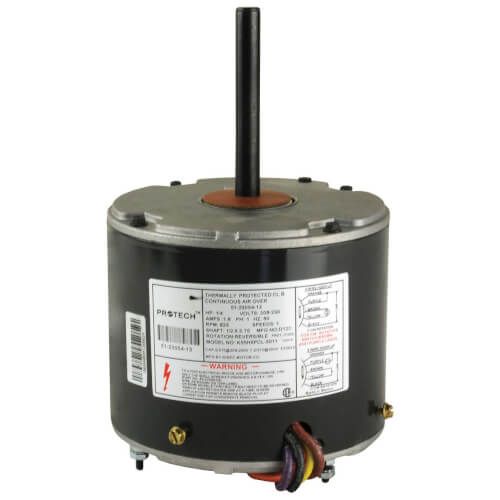

Rheem 51-23054-13 - ProTech® Condenser Motor - 1/4 HP, 1 Phase, 1 Speed, 208/230V, 825 RPM

Brand:
Reviews (0)
SKU
51-23054-13
Rheem 51-23054-13 - ProTech® Condenser Motor - 1/4 HP, 1 Phase, 1 Speed, 208/230V, 825 RPM

Rheem 51-23054-13 - ProTech® Condenser Motor - 1/4 HP, 1 Phase, 1 Speed, 208/230V, 825 RPM

SKU
51-23054-13
Brand:
Reviews (0)
$220.99
Out of stock

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

Application: Condenser
Bearing Type: Sleeve
Drive Type: Direct Drive
FLA at 230V (A): 1.80
Frame Size: 48
Frequency (Hz): 60
High Speed (RPM): 825
HP: 1/4
Input Voltage (V): 208 | 230
Keyed/Flat Shaft Length (in.): 3-1/4
Motor Body Diameter (in.): 5-5/8
Motor Body Length (in.): 4-1/2
Mounting: Shell-band | Shell-screw | Thru-bolt
No. of Phases: 1
No. of Speeds: 1
Overall Motor Length (in.): 8-1/4
Overall Shaft Length (in.): 3-3/4
Rotation Direction (OSE): Reversible
Run Capacitor (uF/V): 5/370
Shaft Diameter (in.): 1/2
More Information
More Information
Package Quantity1 Item
Item ReturnsThis item can be returned
