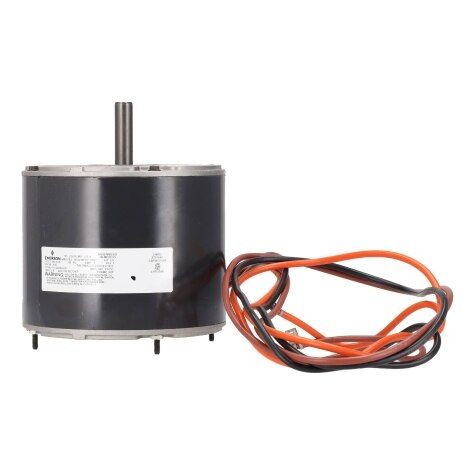

Rheem 51-24299-05 - Condenser Motor - 1/5 HP, 1 Phase, 1 Speed, 380-415V, 900 RPM

Brand:
Reviews (0)
SKU
51-24299-05
Rheem 51-24299-05 - Condenser Motor - 1/5 HP, 1 Phase, 1 Speed, 380-415V, 900 RPM

Rheem 51-24299-05 - Condenser Motor - 1/5 HP, 1 Phase, 1 Speed, 380-415V, 900 RPM

SKU
51-24299-05
Brand:
Reviews (0)
$134.68
Out of stock

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

Application: Condenser
Bearing Type: Sleeve
Drive Type: Direct Drive
FLA at 380-415V (A): 0.70
Frame Size: 48
Frequency (Hz): 50
High Speed (RPM): 900
HP: 1/5
Input Voltage (V): 380-415
Keyed/Flat Shaft Length (in.): 1-1/2
LRA at 380-415V (A): 1.20
Motor Body Diameter (in.): 5-5/8
Motor Body Length (in.): 4-9/16
Mounting: Shell-band | Thru-bolt
No. of Phases: 1
No. of Speeds: 1
Overall Motor Length (in.): 6-11/16
Overall Shaft Length (in.): 1-3/4
Rotation Direction (OSE): CCW
Run Capacitor (uF/V): 3/370
Shaft Diameter (in.): 1/2
