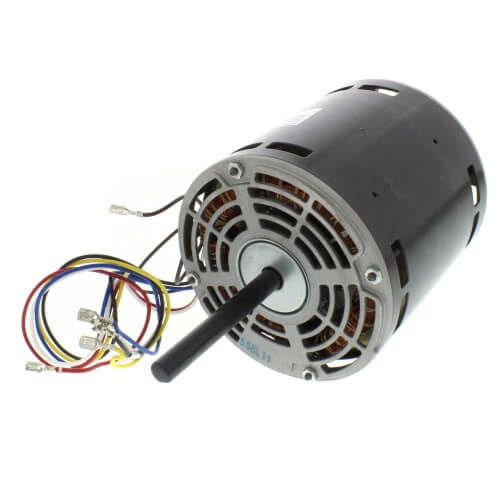

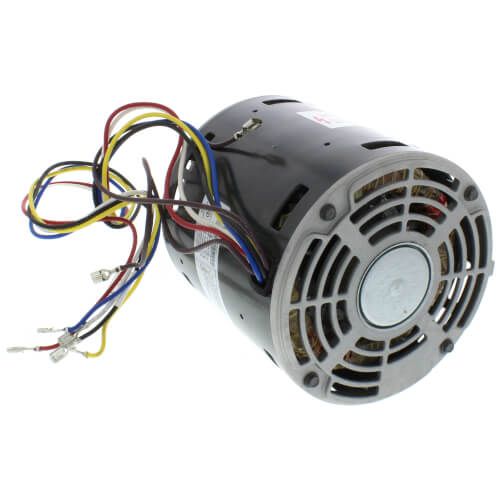

Rheem 51-25023-01 - Blower Motor - 3/4 HP, 1 Phase, 4 Speed, 120V, 1075 RPM

Brand:
Reviews (0)
SKU
51-25023-01
Rheem 51-25023-01 - Blower Motor - 3/4 HP, 1 Phase, 4 Speed, 120V, 1075 RPM
Rheem 51-25023-01 - Blower Motor - 3/4 HP, 1 Phase, 4 Speed, 120V, 1075 RPM
Rheem 51-25023-01 - Blower Motor - 3/4 HP, 1 Phase, 4 Speed, 120V, 1075 RPM
Rheem 51-25023-01 - Blower Motor - 3/4 HP, 1 Phase, 4 Speed, 120V, 1075 RPM

Rheem 51-25023-01 - Blower Motor - 3/4 HP, 1 Phase, 4 Speed, 120V, 1075 RPM

SKU
51-25023-01
Brand:
Reviews (0)
$183.42
Out of stock

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

Application: Blower
Bearing Type: Sleeve
Drive Type: Direct Drive
FLA at 120V (A): 9.50
Frame Size: 48
Frequency (Hz): 60
High Speed (RPM): 1075
HP: 3/4
Input Voltage (V): 120
Keyed/Flat Shaft Length (in.): 3-1/16
LRA at 120V (A): 23.00
Motor Body Diameter (in.): 5-5/8
Motor Body Length (in.): 5-13/16
Mounting: Shell-band | Shell-screw
No. of Phases: 1
No. of Speeds: 4
Overall Motor Length (in.): 9-9/16
Overall Shaft Length (in.): 3-3/4
Rotation Direction (OSE): CCW
Run Capacitor (uF/V): 15/370
Shaft Diameter (in.): 1/2

More Information
More Information
Package Quantity1 Item
