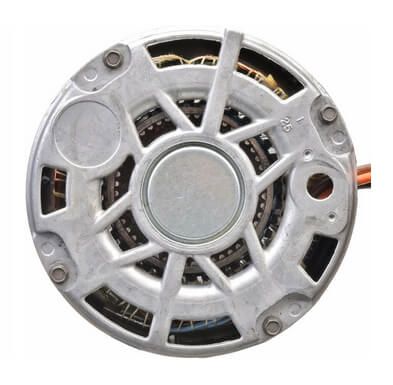

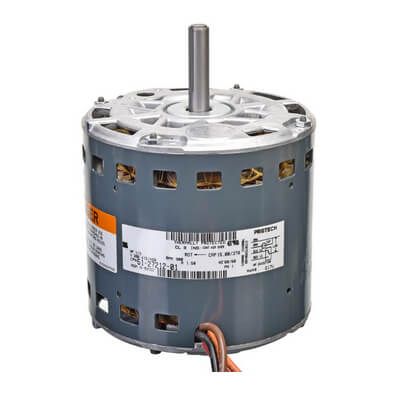

Rheem 51-27212-02 - Blower Motor - 1/2 HP, 1 Phase, 1 Speed, 460V, 825 RPM

Brand:
Reviews (0)
SKU
51-27212-02
Rheem 51-27212-02 - Blower Motor - 1/2 HP, 1 Phase, 1 Speed, 460V, 825 RPM
Rheem 51-27212-02 - Blower Motor - 1/2 HP, 1 Phase, 1 Speed, 460V, 825 RPM
Rheem 51-27212-02 - Blower Motor - 1/2 HP, 1 Phase, 1 Speed, 460V, 825 RPM
Rheem 51-27212-02 - Blower Motor - 1/2 HP, 1 Phase, 1 Speed, 460V, 825 RPM

Rheem 51-27212-02 - Blower Motor - 1/2 HP, 1 Phase, 1 Speed, 460V, 825 RPM

SKU
51-27212-02
Brand:
Reviews (0)
$387.24
Out of stock

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

Application: Blower
Bearing Type: Sleeve
Drive Type: Direct Drive
FLA at 460V (A): 1.90
Frame Size: 48
Frequency (Hz): 50 | 60
High Speed (RPM): 825
HP: 1/2
Input Voltage (V): 460
Keyed/Flat Shaft Length (in.): 1-1/2
LRA at 460V (A): 2.60
Motor Body Diameter (in.): 5-5/8
Motor Body Length (in.): 5-1/2
Mounting: Shell-band | Shell-screw
No. of Phases: 1
No. of Speeds: 1
Overall Motor Length (in.): 8-4/5
Overall Shaft Length (in.): 3-5/16
Rotation Direction (OSE): CCW
Run Capacitor (uF/V): 20/370
Shaft Diameter (in.): 1/2
