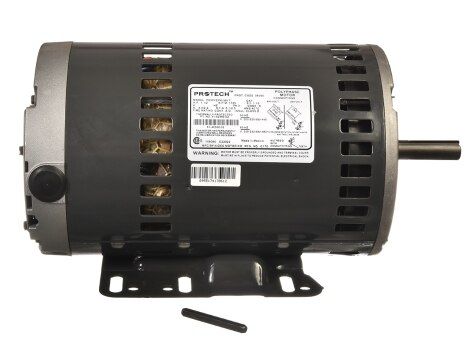

Rheem 51-42369-02 - Blower Motor - 1-1/2 HP, 3 Phase, 1 Speed, 208/220/230/380-415/460V, 1725 RPM

Brand:
Reviews (0)
SKU
51-42369-02
Rheem 51-42369-02 - Blower Motor - 1-1/2 HP, 3 Phase, 1 Speed, 208/220/230/380-415/460V, 1725 RPM

Rheem 51-42369-02 - Blower Motor - 1-1/2 HP, 3 Phase, 1 Speed, 208/220/230/380-415/460V, 1725 RPM

SKU
51-42369-02
Brand:
Reviews (0)
$503.36
Out of stock

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

Application: Blower
Bearing Type: Ball
Drive Type: Belt Drive
FLA at 208V (A): 4.40
FLA at 220V (A): 4.40
FLA at 230V (A): 4.40
FLA at 380-415V (A): 2.20
FLA at 460V (A): 2.20
Frame Size: 56
Frequency (Hz): 50 | 60
High Speed (RPM): 1725
HP: 1-1/2
Input Voltage (V): 208 | 220 | 230 | 380-415 | 460
Keyed/Flat Shaft Length (in.): 2-1/2
LRA at 208V (A): 32.30
LRA at 220V (A): 32.30
LRA at 230V (A): 32.30
LRA at 380-415V (A): 16.20
LRA at 460V (A): 16.20
Motor Body Diameter (in.): 6-1/2
Motor Body Length (in.): 10-23/32
Mounting: Platform
No. of Phases: 3
No. of Speeds: 1
Overall Motor Length (in.): 13
Overall Shaft Length (in.): 1-3/4
Rotation Direction (OSE): Reversible
Shaft Diameter (in.): 5/8
