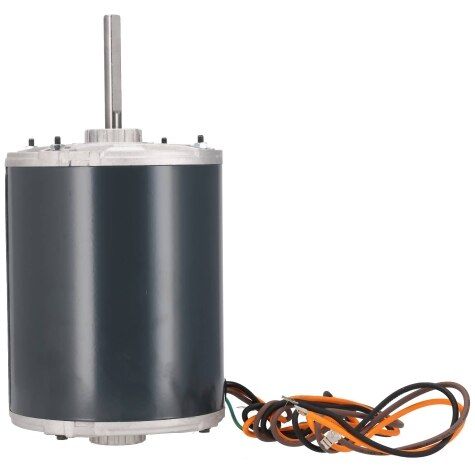

Rheem 51-42534-07 - Condenser Motor - 3/4 HP, 1 Phase, 1 Speed, 220V, 1350 RPM

Brand:
Reviews (0)
SKU
51-42534-07
Rheem 51-42534-07 - Condenser Motor - 3/4 HP, 1 Phase, 1 Speed, 220V, 1350 RPM

Rheem 51-42534-07 - Condenser Motor - 3/4 HP, 1 Phase, 1 Speed, 220V, 1350 RPM

SKU
51-42534-07
Brand:
Reviews (0)
$414.47
Out of stock

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

Application: Condenser
Bearing Type: Ball
Drive Type: Direct Drive
FLA at 230V (A): 5.00
Frame Size: 56
Frequency (Hz): 50
High Speed (RPM): 1350
HP: 3/4
Input Voltage (V): 220
Keyed/Flat Shaft Length (in.): 2-3/4
LRA at 230V (A): 16.40
Motor Body Diameter (in.): 6-7/16
Motor Body Length (in.): 9-5/16
Mounting: Shell-band
No. of Phases: 1
No. of Speeds: 1
Overall Motor Length (in.): 12-9/16
Overall Shaft Length (in.): 3-1/4
Rotation Direction (OSE): CCW
Run Capacitor (uF/V): 15/370
Shaft Diameter (in.): 1/2
