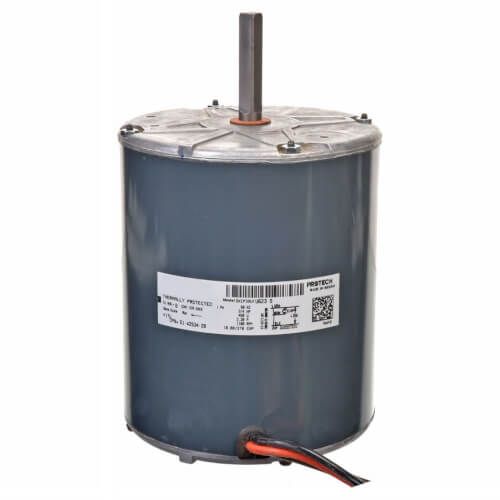

Rheem 51-42534-20 - Condenser Motor - 3/4 HP, 1 Phase, 1 Speed, 460V, 1075 RPM

Brand:
Reviews (0)
SKU
51-42534-20
Rheem 51-42534-20 - Condenser Motor - 3/4 HP, 1 Phase, 1 Speed, 460V, 1075 RPM
Rheem 51-42534-20 - Condenser Motor - 3/4 HP, 1 Phase, 1 Speed, 460V, 1075 RPM
Rheem 51-42534-20 - Condenser Motor - 3/4 HP, 1 Phase, 1 Speed, 460V, 1075 RPM
Rheem 51-42534-20 - Condenser Motor - 3/4 HP, 1 Phase, 1 Speed, 460V, 1075 RPM
Rheem 51-42534-20 - Condenser Motor - 3/4 HP, 1 Phase, 1 Speed, 460V, 1075 RPM
Rheem 51-42534-20 - Condenser Motor - 3/4 HP, 1 Phase, 1 Speed, 460V, 1075 RPM

Rheem 51-42534-20 - Condenser Motor - 3/4 HP, 1 Phase, 1 Speed, 460V, 1075 RPM

SKU
51-42534-20
Brand:
Reviews (0)
$299.05
Out of stock

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

Application: Condenser
Bearing Type: Ball
Drive Type: Direct Drive
FLA at 460V (A): 2.30
Frame Size: 48
Frequency (Hz): 60
High Speed (RPM): 1075
HP: 3/4
Input Voltage (V): 460
Keyed/Flat Shaft Length (in.): 2
LRA at 460V (A): 4.90
Motor Body Diameter (in.): 5-39/64
Motor Body Length (in.): 6-3/4
Mounting: End-boss | Shell-band
No. of Phases: 1
No. of Speeds: 1
Overall Motor Length (in.): 9
Overall Shaft Length (in.): 2-1/4
Rotation Direction (OSE): CCW
Run Capacitor (uF/V): 10/370
Shaft Diameter (in.): 1/2
