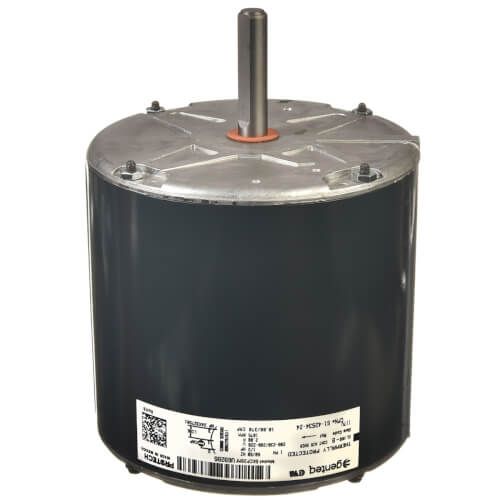

Rheem 51-42534-24 - Condenser Motor - 1/3 HP, 1 Phase, 1 Speed, 208/220/230V, 1075 RPM

Brand:
Reviews (0)
SKU
51-42534-24
Rheem 51-42534-24 - Condenser Motor - 1/3 HP, 1 Phase, 1 Speed, 208/220/230V, 1075 RPM

Rheem 51-42534-24 - Condenser Motor - 1/3 HP, 1 Phase, 1 Speed, 208/220/230V, 1075 RPM

SKU
51-42534-24
Brand:
Reviews (0)
$179.21
Out of stock

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

Application: Condenser
Bearing Type: Ball
Drive Type: Direct Drive
FLA at 208V (A): 2.00
FLA at 220V (A): 2.00
FLA at 230V (A): 2.00
Frame Size: 48
Frequency (Hz): 50 | 60
High Speed (RPM): 1075
HP: 1/3
Input Voltage (V): 208 | 220 | 230
Keyed/Flat Shaft Length (in.): 1-53/64
LRA at 208V (A): 3.90
LRA at 220V (A): 3.90
LRA at 230V (A): 3.90
Motor Body Diameter (in.): 6-5/8
Motor Body Length (in.): 5-31/64
Mounting: End-boss | Shell-band
No. of Phases: 1
No. of Speeds: 1
Overall Motor Length (in.): 7-9/16
Overall Shaft Length (in.): 2-1/16
Rotation Direction (OSE): CCW
Run Capacitor (uF/V): 10/370
Shaft Diameter (in.): 1/2
