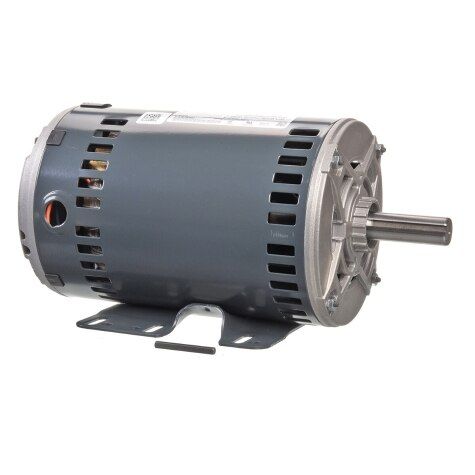

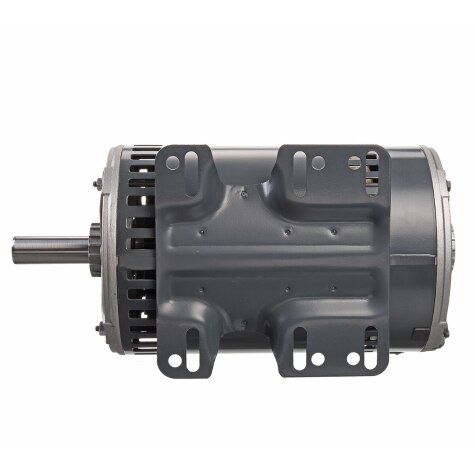

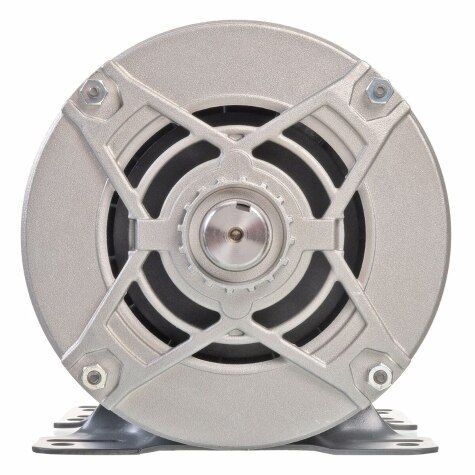

Rheem 51-42536-02 - Blower Motor - 2 HP, 3 Phase, 1 Speed, 575V, 1725 RPM

Brand:
Reviews (0)
SKU
51-42536-02
Rheem 51-42536-02 - Blower Motor - 2 HP, 3 Phase, 1 Speed, 575V, 1725 RPM
Rheem 51-42536-02 - Blower Motor - 2 HP, 3 Phase, 1 Speed, 575V, 1725 RPM
Rheem 51-42536-02 - Blower Motor - 2 HP, 3 Phase, 1 Speed, 575V, 1725 RPM
Rheem 51-42536-02 - Blower Motor - 2 HP, 3 Phase, 1 Speed, 575V, 1725 RPM
Rheem 51-42536-02 - Blower Motor - 2 HP, 3 Phase, 1 Speed, 575V, 1725 RPM
Rheem 51-42536-02 - Blower Motor - 2 HP, 3 Phase, 1 Speed, 575V, 1725 RPM

Rheem 51-42536-02 - Blower Motor - 2 HP, 3 Phase, 1 Speed, 575V, 1725 RPM

SKU
51-42536-02
Brand:
Reviews (0)
$396.50
Out of stock

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

Application: Blower
Bearing Type: Ball
Drive Type: Belt Drive
FLA at 575V (A): 2.40
Frame Size: 56Y
Frequency (Hz): 60
High Speed (RPM) :1725
HP: 2
Input Voltage (V): 575
Keyed/Flat Shaft Length (in.): 3/16 x 3/16 x 1-7/8
LRA at 575V (A): 19.00
Motor Body Diameter (in.): 6-7/16
Motor Body Length (in.): 11-5/16
Mounting: Platform
No. of Phases: 3
No. of Speeds: 1
Overall Motor Length (in.): 13-9/16
Overall Shaft Length (in.): 2-3/8
Rotation Direction (OSE): Reversible
Shaft Diameter (in.): 7/8
