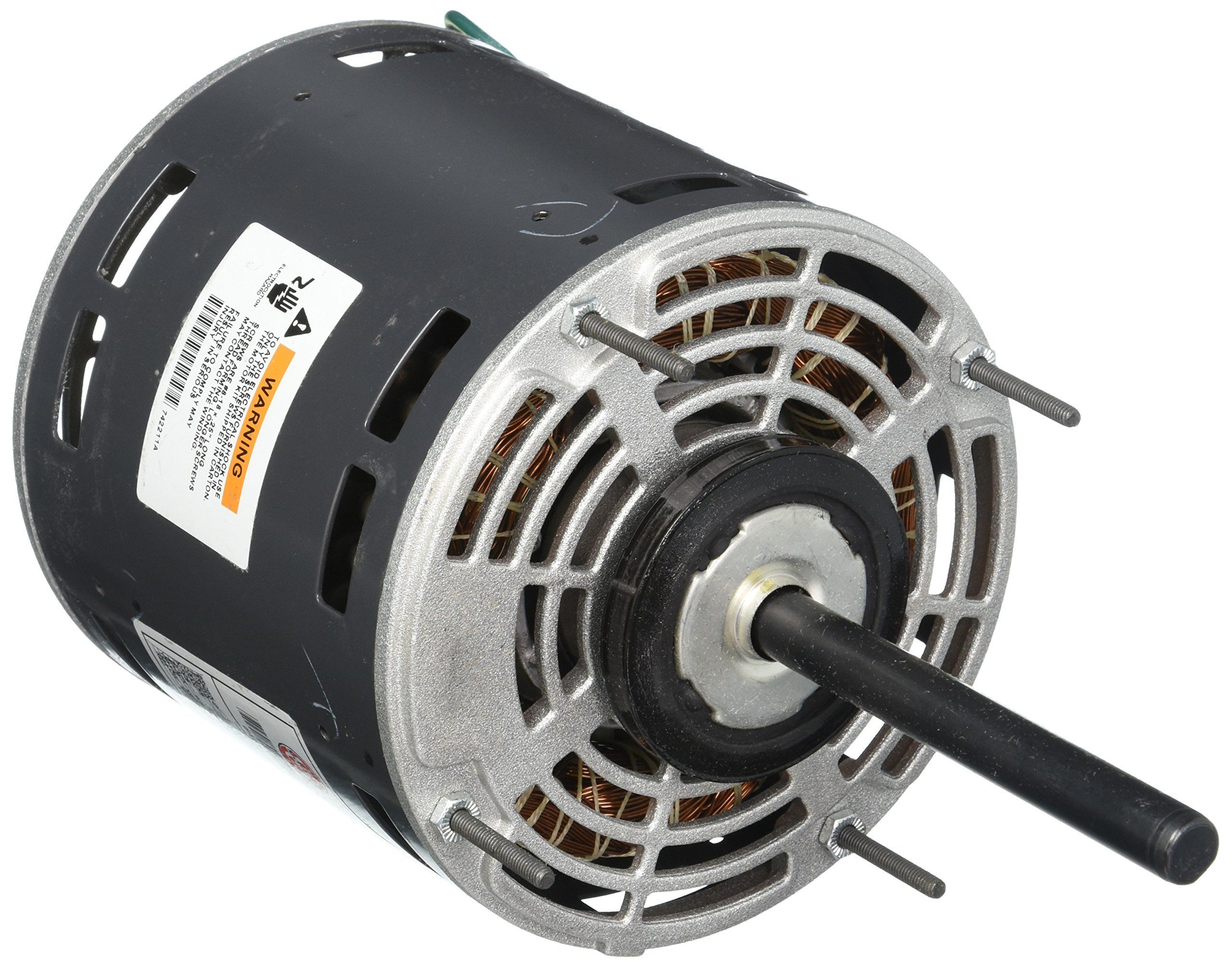

Rheem 5461 - RESCUE Blower Motor - 1/6 - 1/2 HP, 1 Phase, 4 Speed, 208/230V, 1075 RPM

Brand:
Reviews (0)
SKU
5461
Rheem 5461 - RESCUE Blower Motor - 1/6 - 1/2 HP, 1 Phase, 4 Speed, 208/230V, 1075 RPM

Rheem 5461 - RESCUE Blower Motor - 1/6 - 1/2 HP, 1 Phase, 4 Speed, 208/230V, 1075 RPM

SKU
5461
Brand:
Reviews (0)
$154.28
Out of stock

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

Application: Blower
Bearing Type: Sleeve
Drive Type: Direct Drive
FLA at 208V (A): 3.96
FLA at 230V (A): 3.60
Frame Size: 48
Frequency (Hz): 60
High Speed (RPM): 1075
HP: 1/6 to 1/2
Input Voltage (V): 208 | 230
Keyed/Flat Shaft Length (in.): 4
Motor Body Diameter (in.): 5-5/8
Motor Body Length (in.): 4-3/4
Mounting: Resilient Ring | Shell-band | Shell-screw | Thru-bolt
No. of Phases: 1
No. of Speeds: 4
Overall Motor Length (in.): 9-3/4
Overall Shaft Length (in.): 5
Rotation Direction (OSE): Reversible
Run Capacitor (uF/V): 10/370
Shaft Diameter (in.): 1/2
More Information
More Information
Package Quantity1 Item
Item ReturnsThis item can be returned
