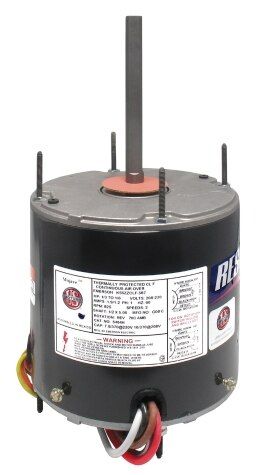

Rheem 5464H - RESCUE Condenser Motor - 1/3 - 1/6 HP, 1 Phase, 2 Speed, 208/230V, 825 RPM

Brand:
Reviews (0)
SKU
5464H
Rheem 5464H - RESCUE Condenser Motor - 1/3 - 1/6 HP, 1 Phase, 2 Speed, 208/230V, 825 RPM
Rheem 5464H - RESCUE Condenser Motor - 1/3 - 1/6 HP, 1 Phase, 2 Speed, 208/230V, 825 RPM
Rheem 5464H - RESCUE Condenser Motor - 1/3 - 1/6 HP, 1 Phase, 2 Speed, 208/230V, 825 RPM
Rheem 5464H - RESCUE Condenser Motor - 1/3 - 1/6 HP, 1 Phase, 2 Speed, 208/230V, 825 RPM

Rheem 5464H - RESCUE Condenser Motor - 1/3 - 1/6 HP, 1 Phase, 2 Speed, 208/230V, 825 RPM

SKU
5464H
Brand:
Reviews (0)
$181.38
Out of stock

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

Application: Condenser
Bearing Type: Ball
Drive Type: Direct Drive
FLA at 208V (A): 2.10
FLA at 230V (A): 1.90
Frame Size: 48
Frequency (Hz): 60
High Speed (RPM): 825
HP: 1/6 to 1/3
Input Voltage (V): 208 | 230
Keyed/Flat Shaft Length (in.): 4-1/2
Motor Body Diameter (in.): 5-5/8
Motor Body Length (in.): 5-1/4
Mounting: Shell-band | Thru-bolt
No. of Phases: 1
No. of Speeds: 2
Overall Motor Length (in.): 10-1/4
Overall Shaft Length (in.): 5
Rotation Direction (OSE): Reversible
Run Capacitor (uF/V): 7.5/370
Shaft Diameter (in.): 1/2
