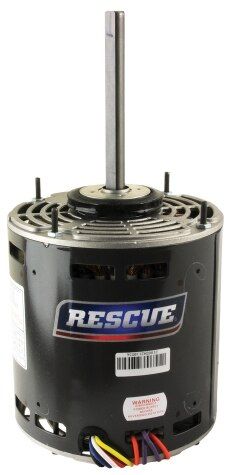

Rheem 5470 - RESCUE Blower Motor - 1/5 - 3/4 HP, 1 Phase, 4 Speed, 120V, 1075 RPM

Brand:
Reviews (0)
SKU
5470
Rheem 5470 - RESCUE Blower Motor - 1/5 - 3/4 HP, 1 Phase, 4 Speed, 120V, 1075 RPM
Rheem 5470 - RESCUE Blower Motor - 1/5 - 3/4 HP, 1 Phase, 4 Speed, 120V, 1075 RPM
Rheem 5470 - RESCUE Blower Motor - 1/5 - 3/4 HP, 1 Phase, 4 Speed, 120V, 1075 RPM
Rheem 5470 - RESCUE Blower Motor - 1/5 - 3/4 HP, 1 Phase, 4 Speed, 120V, 1075 RPM

Rheem 5470 - RESCUE Blower Motor - 1/5 - 3/4 HP, 1 Phase, 4 Speed, 120V, 1075 RPM

SKU
5470
Brand:
Reviews (0)
$189.90
Out of stock

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

Application: Blower
Bearing Type: Ball
Drive Type: Direct Drive
FLA at 120V (A): 8.10
Frame Size: 48
Frequency (Hz): 60
High Speed (RPM): 1075
HP: 1/5 to 3/4
Input Voltage (V): 120
Keyed/Flat Shaft Length (in.): 4-1/2
Motor Body Diameter (in.): 5-5/8
Motor Body Length (in.): 6-1/16
Mounting: Resilient Ring | Shell-band | Shell-screw | Thru-bolt
No. of Phases: 1
No. of Speeds: 4
Overall Motor Length (in.): 11-5/8
Overall Shaft Length (in.): 5
Rotation Direction (OSE): Reversible
Run Capacitor (uF/V): 20/370
Shaft Diameter (in.): 1/2
More Information
More Information
Package Quantity1 Item
Item ReturnsThis item can be returned
