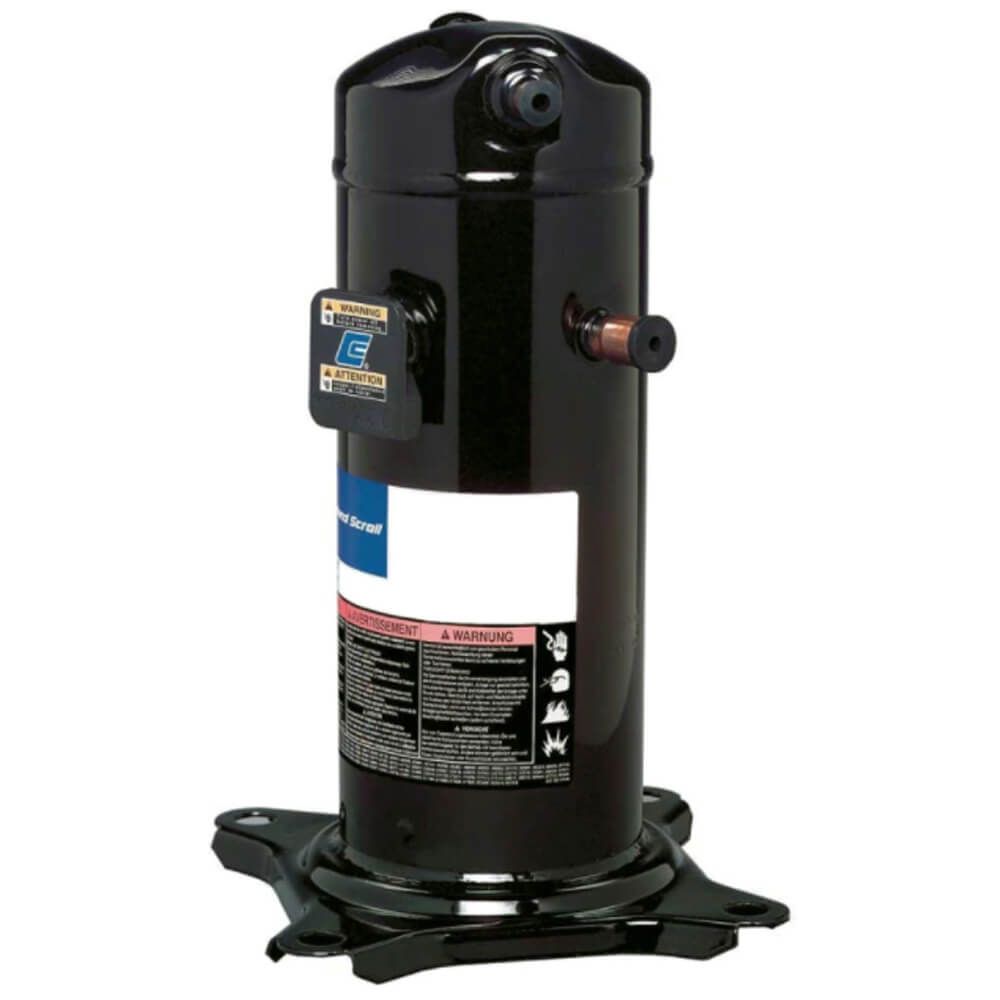

Rheem 55-102471-01S - Scroll Compressor - 105000 BTU/HR, 208/230V, 3-Phase

Brand:
Reviews (0)
SKU
55-102471-01S

Rheem 55-102471-01S - Scroll Compressor - 105000 BTU/HR, 208/230V, 3-Phase

SKU
55-102471-01S
Brand:
Reviews (0)
$2,596.78
Out of stock
Copeland scroll compressors work with one scroll orbiting in a path defined by a matching fixed scroll. The fixed scroll is attached to the compressor body while the orbiting scroll is coupled to the crankshaft. The orbiting motion creates a series of gas pockets traveling between the two scrolls. On the outer portion of the scrolls, the pockets draw in gas then move it to the center of the scroll where it's discharged. As the gas moves into the scroll's center, the temperature and pressure increase to the desired discharge pressure
More Information
Package Quantity1 Item
Item ReturnsThis item can be returned
