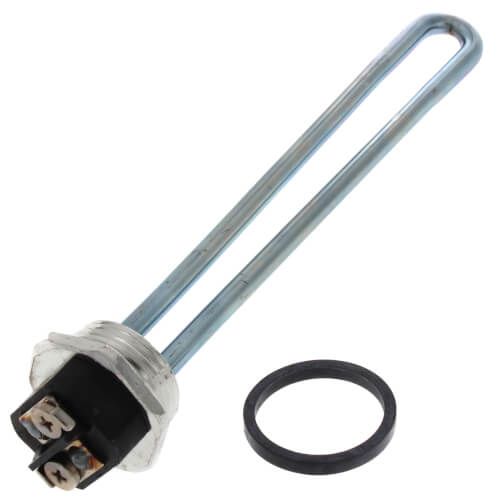

Rheem UV12892 - 1" 2000W Copper Non-Resistored Screw-in Element HWD (120V)
Rheem UV12892 - 1" 2000W Copper Non-Resistored Screw-in Element HWD (120V)
Actual Thread Size - Outside Diameter (in.): 1-9/32
Configuration: Straight
Element Diameter (in.): 0.26
Element Length - Flange to Tip (in.): 7.54
Hex Head Size - Across Flats (in.): 1-1/2
Input Voltage (V): 120
Mounting Type: Threaded
Nominal Thread Size - (in.): 1
Outer Sheath Material: Copper (with Plating)
Resistored: No
Thread Type Series Designation: NPSM
Threads per Inch: 11-1/2
Watt Density at 120V (W/sq. in. ): 170
Watt Density Classification: HWD
Wattage at 120V (W): 2000
| Package Quantity | 1 Item |
|---|---|
| Item Returns | This item can be returned |
