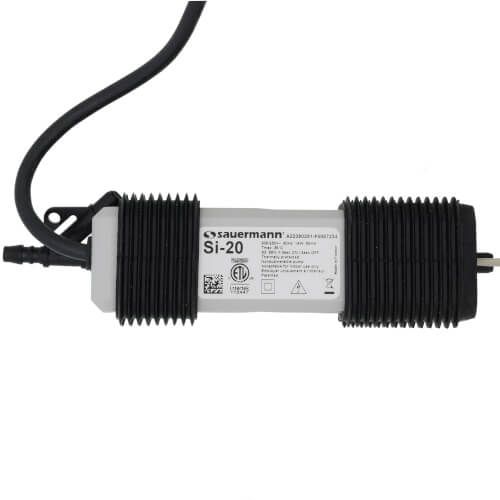

Sauermann SI20UL01UN23 Si-20 Mini Condensate Removal Pump
The Sauermann SI20UL01UN23 Si-20 Mini Condensate Removal Pump is a compact, high-efficiency 230-volt solution engineered for modern HVAC and mini-split systems. Designed for silent operation, reliability, and ease of installation, it’s ideal for both residential and light commercial applications.
Key Features & Benefits
- Compact, slim design – Perfect for tight installation spaces such as wall-mounted or ceiling units.
- High performance – Removes up to 5 gallons per hour (19 L/h) with a maximum discharge head of 33 ft (10 m).
- Quiet & vibration-reduced – Operates at just 22 dBA, making it one of the quietest pumps in its class.
- Reliable piston-pump technology – Handles condensate even with small particles and ensures long service life.
- 230 V / 50-60 Hz operation – Consumes only 14 W, ensuring low power use and high efficiency.
- Built-in safety switch – Protects against overflow and system damage.

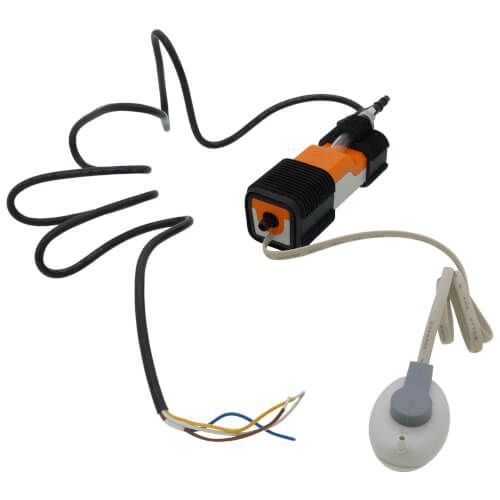

- Complete installation kit – Includes detection unit, tubing, anti-vibration damper, and mounting accessories.
Technical Specifications
- Model: SI20UL01UN23
- Voltage: 230 V AC (50/60 Hz)
- Power Consumption: 14 W
- Max Flow Rate: 5 GPH (19 L/h)
- Max Discharge Head: 33 ft (10 m)
- Max Suction Head: 10 ft (3 m)
- Sound Level: 22 dBA (at 3.3 ft)
- Insulation Class: Double Insulation
- Thermal Protection: Auto Reset (240 °F / 115 °C)
- Safety Switch: NC 8 A Resistive
- Certifications: UL / CSA / RoHS / WEEE Compliant
Applications
- Wall-mounted and ducted mini-split air conditioners
- Ceiling-mounted units
- Floor or console systems with limited space
- Ideal for both contractor installations and homeowner replacements
Installation & Maintenance Notes
- Mount the pump horizontally in accordance with manufacturer recommendations.
- Connect with ¼″ ID clear tubing for condensate discharge.
- Periodically inspect for dust or buildup inside the detection unit.
- Verify your system uses 230 V before installation.
