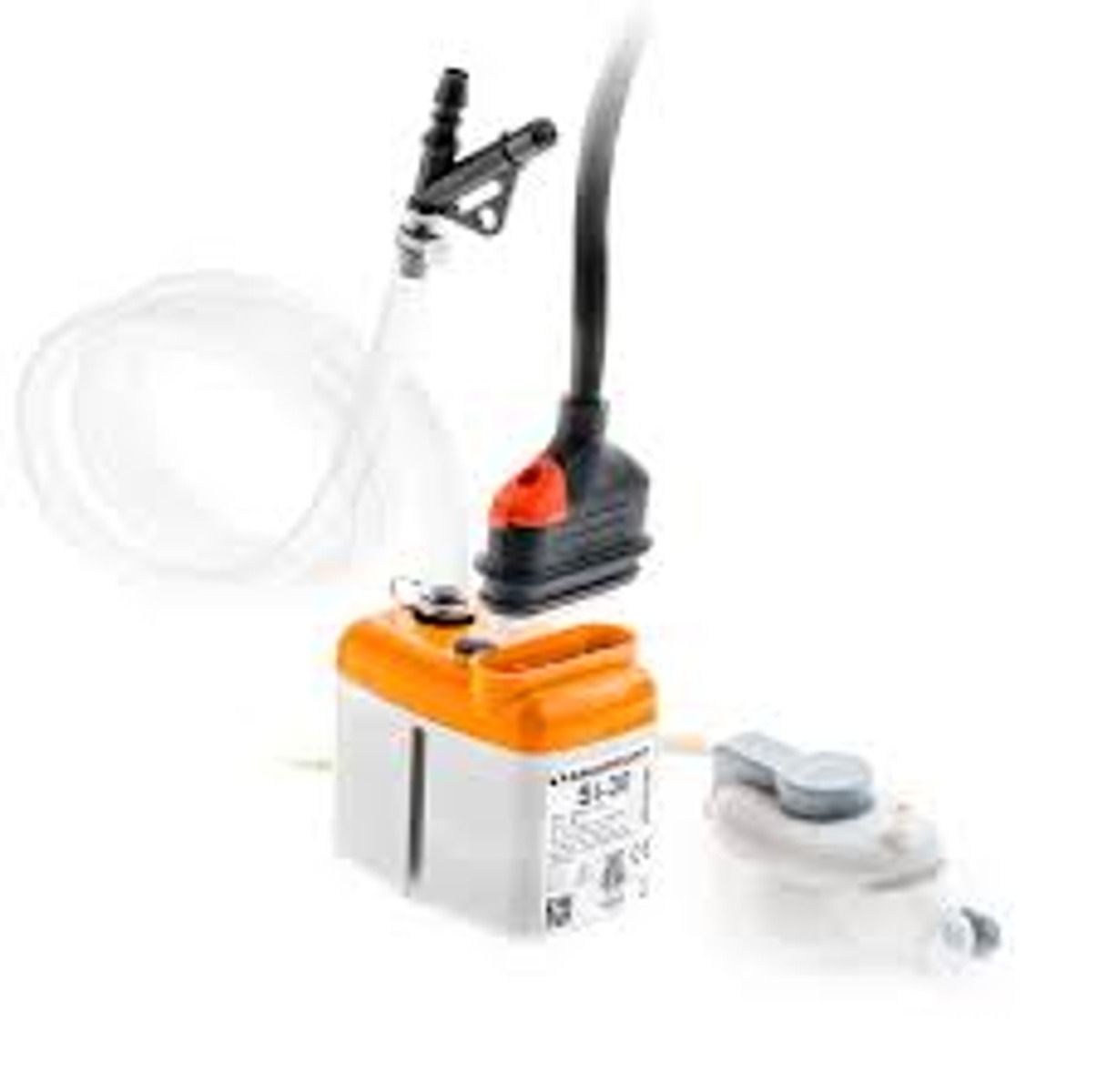

Sauermann SI33UL01UN12 – Si-33 Mini Condensate Removal Pump (5 GPH) 120 V
Product Description:
Experience reliable and quiet condensate removal with the Sauermann Si-33 Mini Condensate Removal Pump, model SI33UL01UN12. Designed for 120 V systems, this high-capacity, compact pump efficiently removes condensate from air-conditioning units, making it ideal for residential and light-commercial HVAC installations.
Experience reliable and quiet condensate removal with the Sauermann Si-33 Mini Condensate Removal Pump, model SI33UL01UN12. Designed for 120 V systems, this high-capacity, compact pump efficiently removes condensate from air-conditioning units, making it ideal for residential and light-commercial HVAC installations.
Key Features & Benefits:
- High flow rate: Up to 5 gph (19 L/h) to handle demanding applications.
- Maximum discharge head: Up to 43 ft (13 m) for flexible installation above or remote from the unit.
- Maximum suction lift: Up to 13 ft (4 m) for non-gravity setups.
- Rated capacity: Suitable for air-conditioning units up to 8.5 tons (30 kW).
- Double-insulated motor: Simplifies wiring and enhances electrical safety.
- Quiet performance: Operates at approximately 34 dBA for noise-sensitive environments.
- Easy installation: Includes detection unit (float switch), anti-vibration mounting bracket, drain-safe device, and locking power cord.
- Compact footprint: Ideal for concealed spaces and retrofit projects.
Applications:
Perfect for mini-split, cassette, ducted, or console air-conditioning systems where gravity drainage is not possible. The Sauermann Si-33 offers the performance of a larger pump in a slim, low-profile package.Why Choose Sauermann Si-33:
This model provides superior condensate management, combining high flow capacity, quiet operation, and dependable performance. Built with Sauermann’s advanced piston pump technology, it ensures long-term reliability with minimal maintenance—ideal for professional HVAC installations.Technical Specifications:
- Model: SI33UL01UN12
- Voltage: 120 V AC, 60 Hz
- Flow Rate: Up to 5 GPH (19 L/h)
- Max Discharge Head: 43 ft (13 m)
- Max Suction Lift: 13 ft (4 m)
- Sound Level: Approx. 34 dBA (at 1 m)
- Insulation Class: Double Insulated
- Operating Temperature Range: Up to 212 °F (100 °C)
- Weight: 1.5 lb (0.68 kg)
- Dimensions (L × W × H): 5.4 in × 2.8 in × 2.8 in (137 × 71 × 71 mm)
- Si-33 Mini Pump (120 V)
- Detection Unit (Float Switch)
- Mounting Bracket and Drain Safe Device
- Locking Power Cord
- Installation Instructions
Covered under Sauermann’s limited manufacturer warranty. For installation guidance, replacements, or contractor pricing, please contact the Beenimax Support Team.
Upgrade your HVAC system with the Sauermann Si-33 Mini Condensate Removal Pump (120 V) — a compact, quiet, and high-performance solution trusted by professionals. Order today from Beenimax.com and ensure reliable condensate control all year round.
