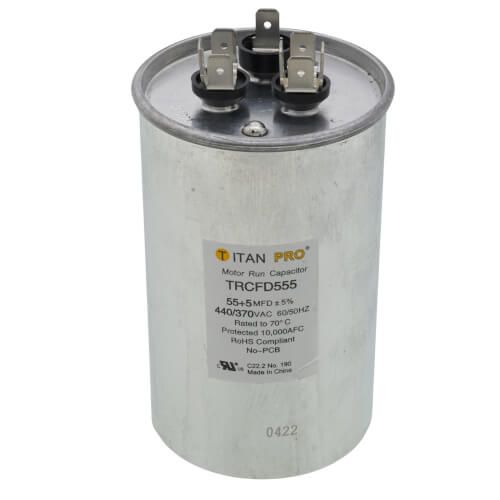

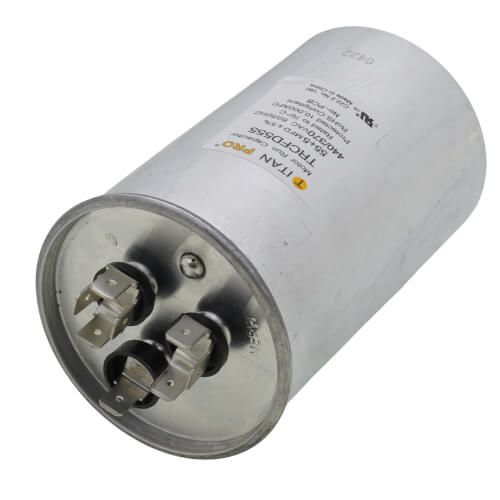

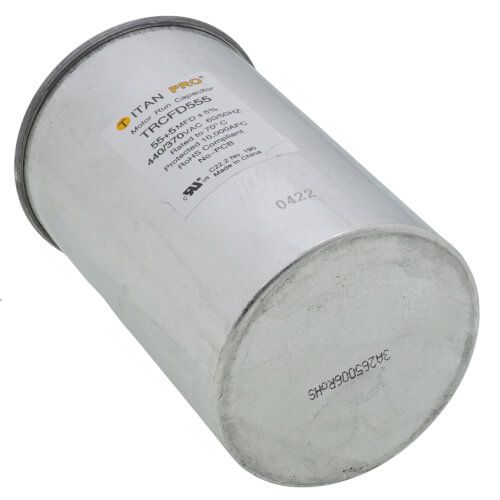

The Titan Pro TRCFD555 is a dual-rated motor run capacitor designed to enhance the performance and efficiency of HVAC systems and electric motors. With a capacitance of 55 + 5 microfarads (µF) and a voltage rating of 440/370 volts AC, it is suitable for continuous duty in various applications.

Key Features & Specifications:

• Capacitance: 55 + 5 µF

• Voltage Rating: 440/370 VAC

• Frequency: 50/60 Hz

• Shape: Round

• Dimensions:

  • Height: 4.13 inches

  • Diameter: 2.5 inches

• Operating Temperature Range: -40°C to +70°C

• Operational Life: 60,000 hours

• Terminals: Standard blade terminals

• Material: Aluminum

• Certifications: Meets EIA-456A, IEC 60252-1:2001, and UL 810 industry standards

This capacitor is a reliable choice for maintaining the optimal functionality of HVAC systems and electric motors, ensuring prolonged operational life and consistent performance.
