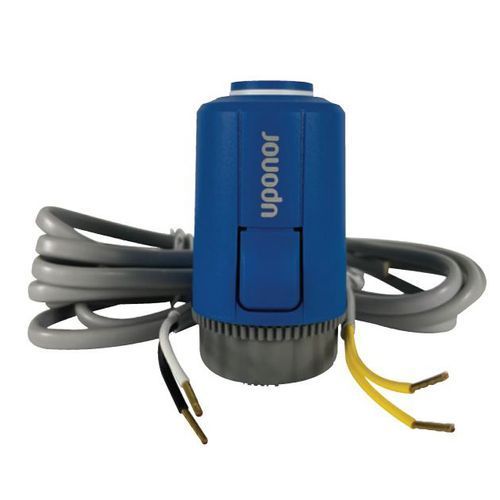

Uponor A3023522 - Thermal Actuator, Four-Wire
The Uponor A3023522 Thermal Actuator is a four-wire, slow-opening actuator designed for precise control of individual loops in hydronic radiant heating and cooling systems. It mounts directly onto Uponor manifolds, including TruFLOW™ Classic, TruFLOW Jr., Stainless-Steel, and Engineered Polymer (EP) Heating Manifolds.
Key Features:
- Voltage: 24 VAC
- Power Consumption: 1 watt
- End Switch Rating: 24 VAC, 0.5 A
- Wiring: Four-wire configuration
- Fluid Temperature Range: 32°F to 212°F (0°C to 100°C)
- Ambient Temperature Range: 32°F to 140°F (0°C to 60°C)
- Dimensions: 2.5" Height x 1.75" Width x 2" Depth
- Weight: Approximately 0.32 lbs
- Cable Length: 36 inches
- Material: Polyamide
- Color: Light Gray
Applications:
- Radiant heating and cooling systems
- Snow and ice melting systems
- Permafrost protection systems
- Turf conditioning systems
The actuator includes adapter rings for compatibility with a variety of Uponor manifolds. For installation on older Wirsbo brass manifolds, the VA33 spacer ring (part number A3019900) is required.
This product is ideal for both residential and commercial settings, offering energy-efficient and dependable control in multi-zone heating and cooling systems.
