Uponor A3040521 - Setpoint 521, Single Temperature Programmable with Sensor

Brand:
Reviews (0)
SKU
A3040521
Uponor A3040521 - Setpoint 521, Single Temperature Programmable with Sensor
Uponor A3040521 - Setpoint 521, Single Temperature Programmable with Sensor
Uponor A3040521 - Setpoint 521, Single Temperature Programmable with Sensor
Uponor A3040521 - Setpoint 521, Single Temperature Programmable with Sensor

Uponor A3040521 - Setpoint 521, Single Temperature Programmable with Sensor

SKU
A3040521
Brand:
Reviews (0)
$437.78
Out of stock

SPECIAL REQUEST

Important Notice:

This is a special order item and will ship with a minimum lead time of 14 days.

Special order items are non-returnable and cannot be canceled once placed.

Please note: Pricing is not final and will be confirmed after we contact you.

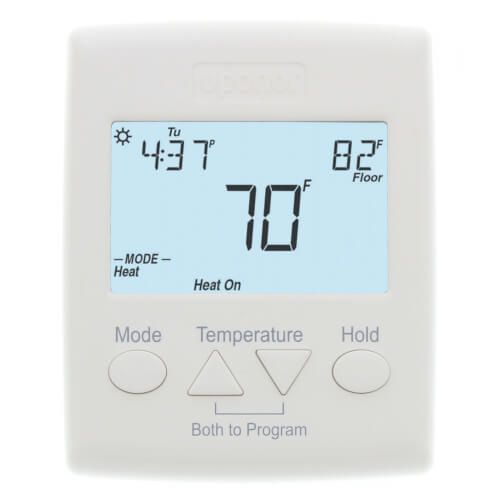

The Uponor A3040521, also known as the SetPoint 521, is a highly versatile programmable thermostat designed for precise temperature control in radiant heating and cooling systems. It offers advanced programmability, multiple sensor options, and intuitive operation to help optimize comfort and energy efficiency.
Key Specifications
  • Model Number: A3040521
  • Power Supply: 24 VAC ±10%, 50/60 Hz, 1.5 VA
  • Control Type: Microprocessor PI Control
  • Mounting Options: Vertical or Horizontal
  • User Interface: Push Button
  • Programmability: 7-Day Programmable
  • Stages: Single-Stage Heating
  • Sensor Compatibility: NTC Thermistor, 10 kΩ @ 77°F; Floor Sensor Included
  • Temperature Range: 32°F to 122°F (0°C to 50°C)
  • Humidity Range: <90% RH Non-Condensing
  • Dimensions: 3" W x 3-11/16" H x 15/16" D
  • Weight: 0.6 lbs
  • Enclosure Type: NEMA Type 1
  • Approvals: CSA C US, FCC, ICES
  •
 Features
  • Modes of Operation: Supports single-stage heating, two-stage heating with fan, or one-stage heating and one-stage cooling with fan.
  • Sensor Flexibility: Works with air, floor, or combination sensors for optimal control.
  • Programmable Schedule: Offers 7-day or 24-hour programming with two or four events per day.
  • Permanent Hold: Allows for schedule overrides when needed.
  • Optimum Start: Ensures desired temperature is reached at scheduled times.
  • Display Features: Backlit display showing temperature, mode, and time.
  • Freeze Protection: Automatically activates heating if the temperature drops below 40°F (4.5°C), even when turned off.
 Included Components
  • Thermostat Unit: SetPoint 521 Programmable Thermostat
  • Floor Sensor: NTC Thermistor with 10' (3 m) wire in stainless steel enclosure
  • Mounting Hardware: Screws and wall anchors
  • Installation Manual: Step-by-step setup and operation guide
Ideal for both residential and light commercial applications, the Uponor A3040521 provides reliable, user-friendly, and efficient control of radiant heating systems.
Available now at Beenimax.com.
