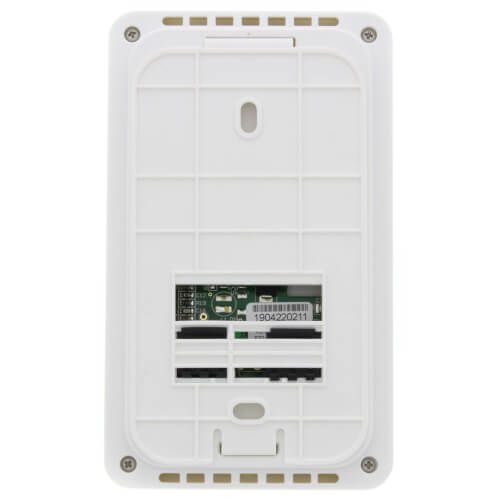

Uponor A3100101 - Heat-only Thermostat with Touchscreen
The Uponor A3100101 is a non-programmable, heat-only thermostat engineered for precise temperature control in hydronic radiant heating systems. With its sleek capacitive touchscreen and compact profile, this thermostat seamlessly blends into modern residential and light commercial spaces. It supports both air and optional floor temperature sensing, delivering optimized comfort and energy savings.
Key Features:
- Capacitive touchscreen for responsive, intuitive control
- Heat-only operation – ideal for radiant floor heating systems
- Operative temperature sensing using air and optional floor sensor
- Compatible with Uponor A9010599 10K J-curve floor sensor
- Two-wire power sharing – no common wire required
- Freeze protection mode activates at 37°F (3°C)
- Slim, low-profile design matches contemporary interiors
- PWM (Pulse Width Modulation) for consistent and efficient heating
- Microprocessor-based control for high-accuracy temperature regulation
Technical Specifications:
- Model: A3100101
- Voltage: 24 VAC ±10%, 60 Hz
- Power Consumption: 1 VA
- Maximum Load: 1.3 A at 24 VAC
- Air Temp Display Range: 32°F to 95°F (0°C to 35°C)
- Air Temp Setpoint Range: 34°F to 86°F (1°C to 30°C)
- Floor Temp Display Range: 32°F to 140°F (0°C to 60°C)
- Floor Temp Setpoint Range: 34°F to 95°F (1°C to 35°C)
- Operating Temp Range: 32°F to 104°F (0°C to 40°C)
- Humidity Range: 20% to 90% RH, non-condensing
- Dimensions: 5.39" H x 3.22" W x 0.63" D (136.91 mm x 81.79 mm x 16 mm)
- Mounting: Wall-mounted, vertical orientation
- Sensor Type: 10K thermistor (J-curve)
- Compliance: CAN ICES-3 (B)/NMB-3(B)
Built for durability and ease of use, the Uponor A3100101 is an excellent choice for achieving consistent temperature control in radiant heating environments. Available now at Beenimax.com – where quality meets performance.
