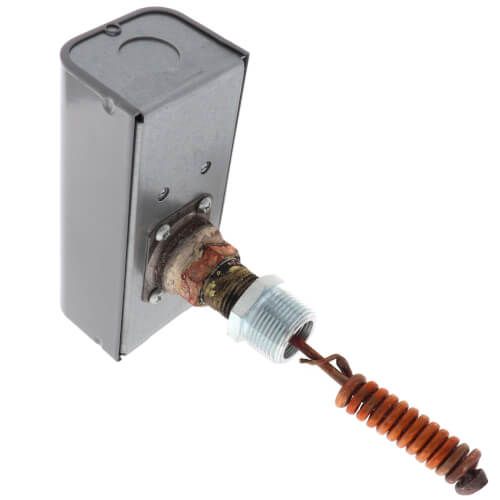

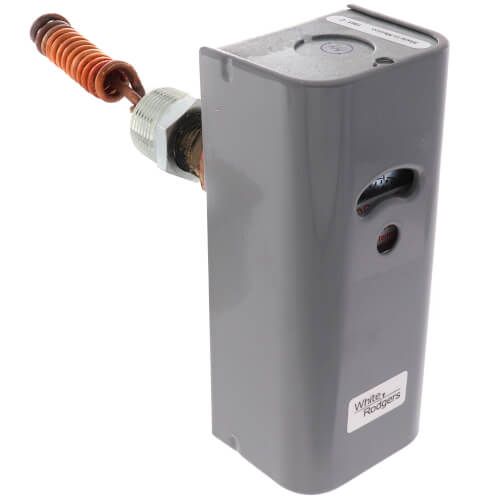

The White Rodgers 11A79-2 is a fast-response, direct immersion temperature control designed for hydronic heating systems, boilers, and process equipment. This unit ensures accurate and reliable temperature regulation with an adjustable differential and rapid thermal response.Specifications:

• Temperature Range: 100°F to 240°F
• Adjustable Differential: 7°F to 45°F
• Switch Type: SPDT (Single Pole Double Throw)
• Electrical Ratings: 7.4 A @ 120 Vac, 3.7 A @ 240 Vac
• Mounting Orientation: Horizontal or vertical
• Thread Size: 1/2" pipe threads (includes 3/4" bushing)
• Bulb Extension: 3-3/8" beyond threads
• Dimensions: 5-3/8" H x 2-5/16" W x 1-7/8" D
• Color: Gray

Features:

• Direct immersion design for faster response times
• Special hydraulic action element for improved temperature sensitivity

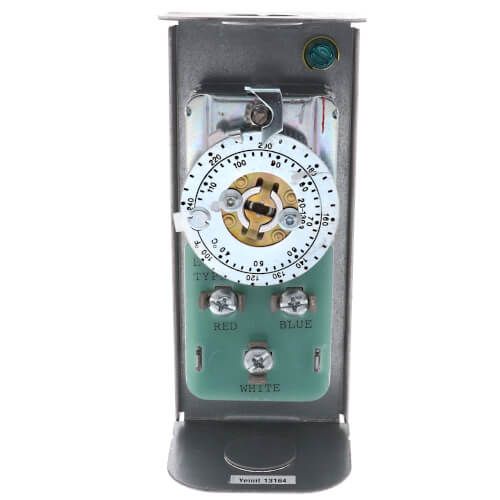

• Temperature dial adjustable through the cover, calibrated in both °F and °C
• Can be used as a high limit, low limit, or combination low limit and circulator control
• Mounts in any position without affecting performance

Perfect for both residential and commercial applications, the 11A79-2 delivers dependable temperature control and long-lasting performance.Now available at Beenimax – your trusted HVAC parts supplier.
