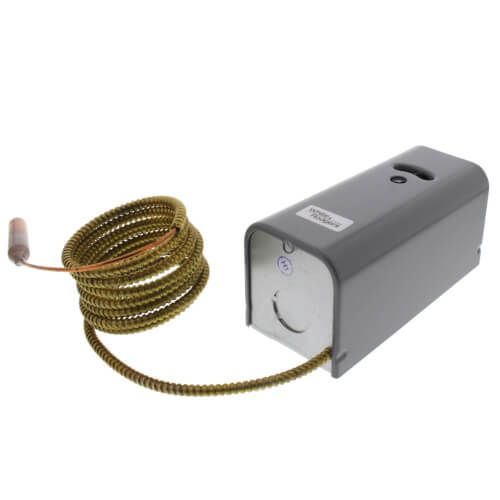

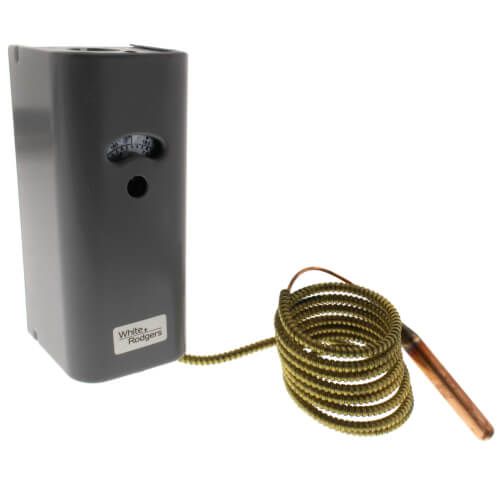

The White Rodgers 11B06-1 is a remote bulb temperature control designed for precise temperature regulation in hydronic heating systems, hot water boilers, vats, oil filtering systems, and other commercial applications. This SPST (Single Pole Single Throw) control features a remote sensing bulb with an adjustable differential of 5°F to 45°F, providing reliable high-limit temperature management.Key Specifications:

• Temperature Range: 100°F to 240°F
• Adjustable Differential: 5°F to 45°F
• Switch Action: Open on temperature rise (contacts break on rise)
• Electrical Ratings: 10A @ 120 VAC, 6A @ 240 VAC
• Bulb Dimensions: 3-1/2" x 7/16"
• Capillary Length: 5 feet
• Mounting Orientation: Vertical or horizontal
• Case Dimensions: 5.75" H x 2-9/16" D x 2-5/16" W
• Enclosure: Dustproof steel case

Features & Benefits:

• Remote bulb design allows sensor placement away from the control body for flexibility and accurate readings
• Adjustable differential offers customizable control to suit various systems
• Durable steel enclosure ensures protection and long-term performance
• Suitable for vertical or horizontal mounting for installation convenience

Available now at Beenimax – a dependable choice for temperature controls and HVAC solutions.
