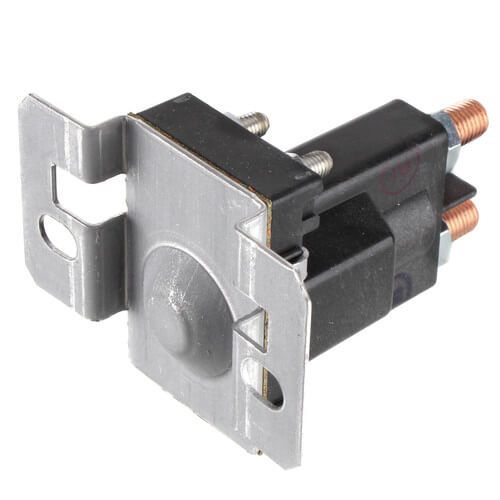

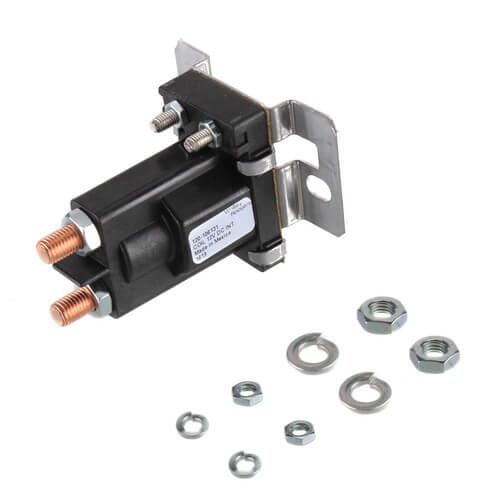

The White Rodgers 120-106131 is a heavy-duty solenoid designed for intermittent duty applications where high-current switching is required. With a normally open (SPNO) contact design and a 12 VDC isolated coil, it delivers consistent performance in automotive, marine, and industrial control systems.Specifications:
- Voltage: 12 VDC (isolated coil)
- Duty Cycle: Intermittent – 30 seconds ON max, 6 minutes OFF min
- Coil Resistance: 6 ohms
- Continuous Contact Rating: 80 amps
- Inrush Current Capacity: 400 amps
- Contact Material: Copper
- Mounting Positions: Horizontal or vertical (coil terminals up)
- Temperature Range: -20°F to 155°F
- Contact Terminals: 5/16"-24 studs
- Coil Terminals: #10-32
- Torque Specifications:
- Contact terminals: 45–55 in-lbs
- Coil terminals: 12–18 in-lbs
- Dimensions: Approx. 3.09" H × 2.88" W × 2.13" D
- Weight: Approx. 6.0 oz
