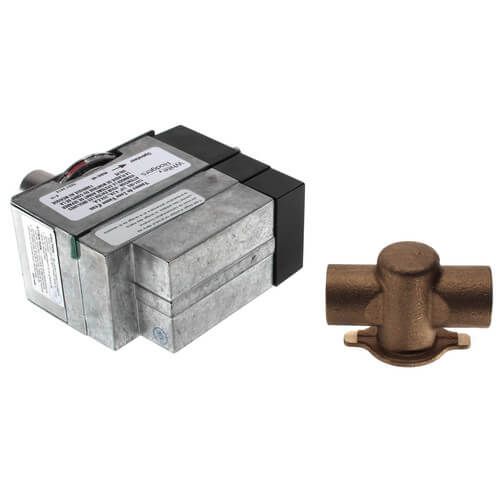

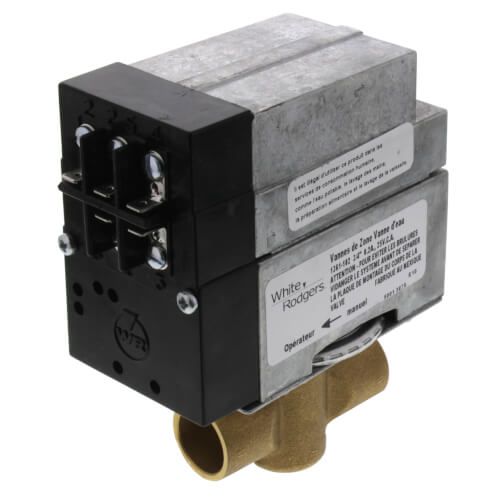

The White Rodgers 1361-102 is a high-performance hydronic zone valve designed for precise water flow control in heating systems. Featuring a 3/4" sweat connection and a two-wire control setup, this valve is ideal for both residential and commercial applications. Its robust stainless steel construction ensures durability and resistance to corrosion.Key Specifications:

• Connection Type: 3/4" sweat
• Voltage: 24V AC
• Wiring: 2-wire
• Flow Capacity (Cv): 23.5
• Valve Position: Normally closed
• Valve Type: 3-way
• Material: Stainless steel body
• Maximum Temperature: 240°F
• Maximum Pressure: 50 PSI
• Amperage: 0.2 A
• Time Cycle: Opens in 45 seconds, closes in 60 seconds
• End Switch: Included
• Width: 4-5/8"

Product Features:

• Self-aligning barrel-type valve stem for smooth actuation
• Corrosion-resistant stainless steel body for long service life
• Manual operator with visual position indicator
• Built-in auxiliary contacts for controlling circulator or burner
• Screw terminal wiring panel for easy hookup
• Removable motor without system draining

This zone valve provides reliable, efficient control for zoned hydronic heating systems and is an excellent choice for improving comfort and energy management.Available now at Beenimax – your reliable source for HVAC solutions.
