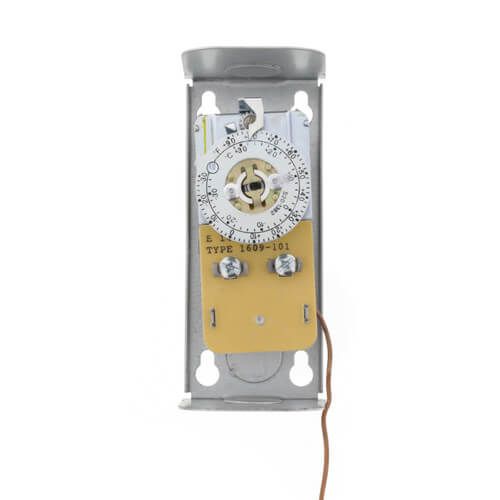

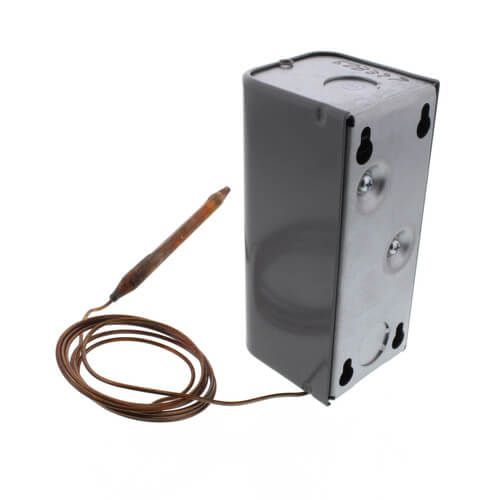

The White Rodgers 1609-101 is a durable and accurate refrigeration temperature control designed for commercial cooling systems. With a broad temperature range from -30°F to 90°F and an adjustable differential from 3.5°F to 40°F, this control is suitable for a wide variety of applications including walk-in coolers and freezers.This unit features a 5-foot capillary tube for flexible sensor placement and uses hydraulic action for reliable sensing. It includes a dustproof steel enclosure with top and bottom knockouts for easy installation and protection in demanding environments.Key Specifications:

• Temperature Range: -30°F to 90°F
• Adjustable Differential: 3.5°F to 40°F
• Capillary Length: 5 feet
• Switch Type: Single Pole Single Throw (SPST)
• Switch Action: Closes on temperature rise
• Sensor Type: Hydraulic action
• Enclosure: Dustproof steel case with knockouts
• Dial: Adjustable through cover, marked in °F and °C

This mechanical control has high electrical ratings, eliminating the need for relays or motor starters in many installations. It’s ideal for zoning systems where each thermostat manages a solenoid valve while sharing a common compressor.Available now at Beenimax – your reliable source for HVAC and refrigeration components.
