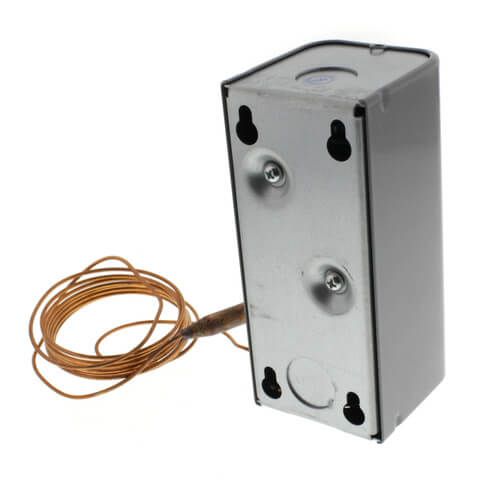

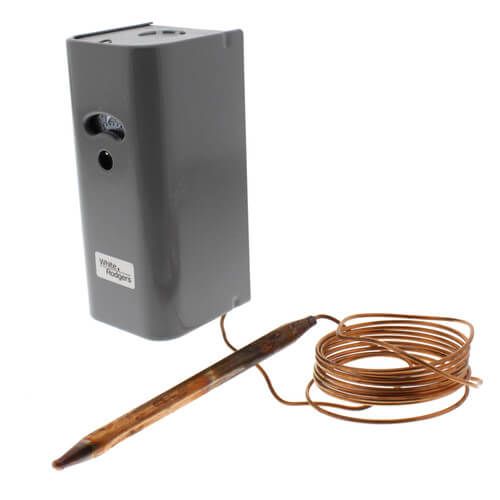

The White Rodgers 1609-90 Refrigeration Temperature Control is designed for reliable temperature regulation in commercial and industrial refrigeration systems. With a temperature range of -20°F to 50°F and support for two circuit hook-ups, it is ideal for walk-in coolers, freezers, and zoning systems.This model features an 8-foot capillary for flexible installation and is built with a dustproof steel case for durability. The control dial is graduated in both °F and °C and can be adjusted through the cover for added convenience. Its snap-acting SPST switch closes on temperature rise, ensuring dependable operation across various setups.Specifications:
- Temperature Range: -20°F to 50°F
- Adjustable Differential: 3°F to 25°F
- Capillary Length: 8 feet
- Switch Type: SPST (Single Pole, Single Throw)
- Switch Action: Closes on temperature rise
- Enclosure: Dustproof steel case with top and bottom knockouts
- Dial: Adjustable through cover, graduated in °F and °C
- Application: Supports two circuits, ideal for zoning systems with shared compressors and separate solenoid valves
