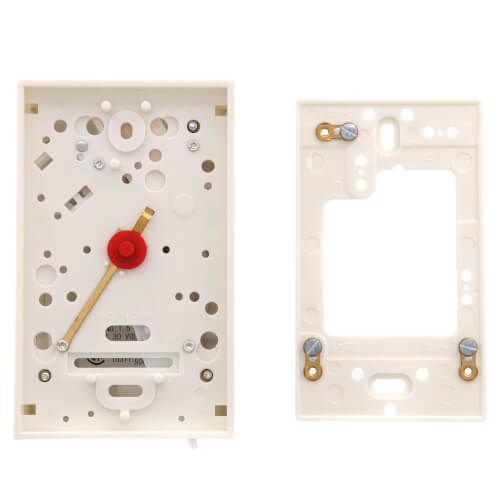

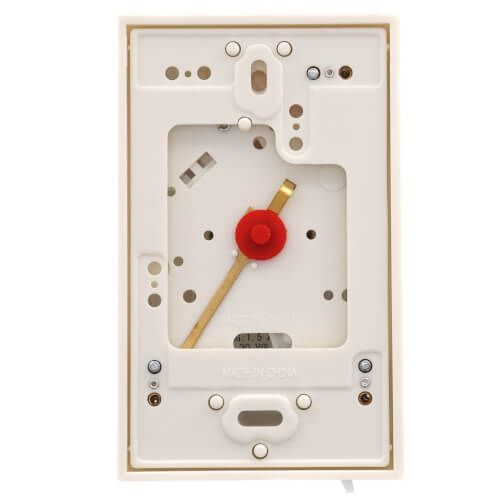

The White Rodgers 1E30N-910 is a non-programmable, mechanical thermostat designed specifically for heat-only systems. With a mercury-free snap-action switch and easy vertical wall mounting, it offers simple and dependable temperature control for residential or light commercial applications.
Key Specifications:
- Application: Heat-only systems (millivolt, 24V, 2-wire)
- Thermostat Type: Mechanical, non-programmable
- Switch Action: SPST (Single Pole Single Throw), open on rise
- Temperature Range: 50°F to 90°F (10°C to 32°C)
- Differential: Fixed
- Mounting Orientation: Vertical wall or junction box
- Design: Mercury-free bimetal sensor with integrated thermometer
- Terminals: R and W screw terminals
- Dimensions: 4.5" H x 2.75" W x 1.5" D
- Color: White
Features:
- Mercury-free for safer handling and environmental compliance
- Snap-action contacts ensure reliable operation
- Easy installation with standard mounting hardware
- Built-in thermometer for convenient temperature reading
- Durable plastic housing for long-lasting use
