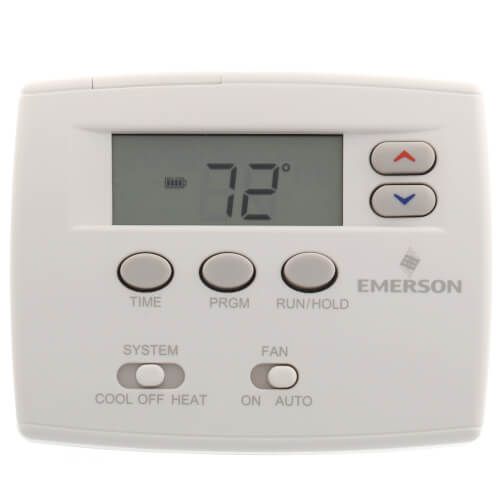

Designed for dependable performance and day-to-day comfort, the White-Rodgers 1F80-0261 thermostat is an ideal upgrade for residential single-stage heating and cooling systems. With 5+1+1 programmable scheduling, you can independently set temperatures for weekdays, Saturdays, and Sundays—making it perfect for homes with varying schedules.The large, blue backlit LCD display offers excellent visibility, while its intuitive interface allows quick programming and temperature adjustments. Compatible with 24V and millivolt systems, this thermostat is suitable for gas, oil, or electric HVAC equipment.Detailed Specifications:
- Programming Type: 5+1+1 day with 4 programmable time periods per day (Wake, Leave, Return, Sleep)
- System Type: 1 Heat / 1 Cool (Single-Stage)
- Power Method: Hardwired or battery-operated (2 x AA batteries included)
- Display: 2-inch blue backlit digital LCD for clear viewing
- Temperature Control Accuracy: ±1°F
- Temperature Setpoint Range:
- Heating: 45°F to 90°F
- Cooling: 50°F to 99°F
- Temperature Differential (Swing): Adjustable
- System Compatibility: 24V and millivolt systems, including gas, oil, and electric furnaces, air conditioners, and heat pumps (without auxiliary heat)
- Changeover: Manual (Heat / Cool / Off modes)
- Fan Modes: Auto / On
- Mounting Type: Horizontal wall mount
- Dimensions: 4.75" W x 3.75" H x 1.5" D
- Humidity Operating Range: 0 to 90% RH (non-condensing)
- Operating Temperature Range: 32°F to 105°F
- Storage Temperature Range: -20°F to 120°F
- Warranty: 5-Year Limited Manufacturer Warranty
- Installation: Easy wiring terminal block, includes mounting hardware and installation manual
