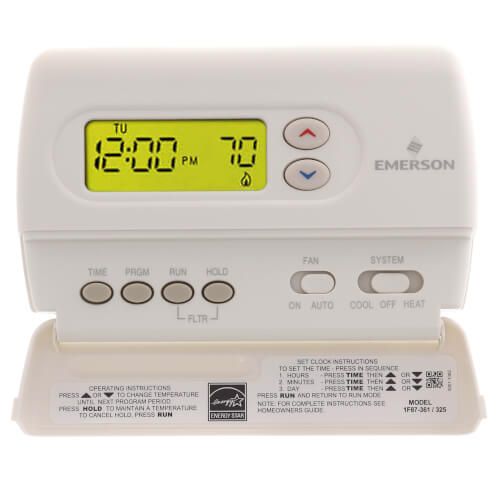

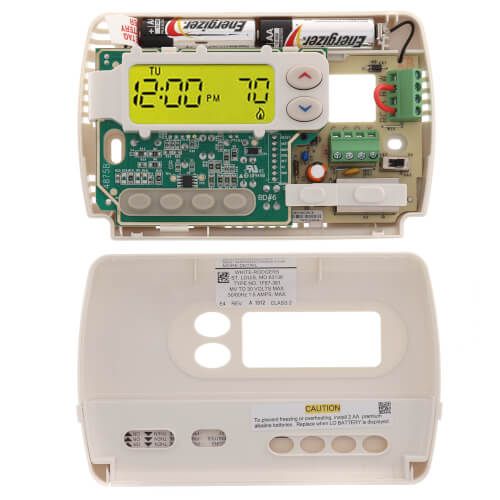

The White Rodgers 1F87-361 is a reliable 7-day programmable thermostat designed for single-stage heating and cooling systems. Compatible with both 24V low-voltage and millivolt systems, it provides flexible installation options for a wide range of residential and light commercial HVAC applications.This thermostat features a large backlit LCD display, allowing for easy readability in various lighting conditions. Its intuitive push-button interface makes it simple to program up to four time periods per day for each day of the week. It also supports both electric and fossil fuel systems and retains settings during power interruptions.Key Specifications:
- Application: Single-Stage Heating/Cooling
- System Compatibility: 24 Volt AC or Millivolt
- Stages: 1 Heat / 1 Cool
- Programmability: 7-Day with 4 time periods per day
- Display: Large backlit LCD
- User Interface: Push-button controls
- Mounting Orientation: Horizontal
- Power Options: Hardwired, Battery, or Dual-Powered (2 AAA batteries)
- Temperature Range: 45°F to 90°F (7°C to 32°C)
- Operating Humidity: 5% to 90% RH (non-condensing)
- Electrical Ratings: 0.05 to 1.5 Amps, 1 to 45 Watts
- Terminals: Rh, Rc, W, Y, G, O, B, C
- Dimensions: Approx. 6" W x 1-3/16" D x 3-7/8" H
- Color: White
